MEW 1500S1258154T Long Length Shank, 90 Degree End Mill

MEW 1500S1258154T Long Length Shank, 90 Degree End Mill

SKU:
THN05155
|
UPC:
4960664735747
$594.56
(No reviews yet)
Width:
1.50 (in)
Height:
1.50 (in)
Depth:
9.00 (in)
Current Stock:
Adding to cart… The item has been added
Description
MEW 1500S1258154T Long Length, Cylindrical Shank, 4 Flute, 90 Degree End Mill with a 1.5000" Cutting Diameter for Shouldering, Facing, Slotting, Plunging Applications
Additional Information
Tool Style:
MEW
Material:
Steel
Application:
Facing|Plunging|Shouldering|Slotting
Hand:
Right-Hand
[KAPR] Tool Entering Angle (Degree):
90
[DCN] Cutting Diameter Minimum (mm):
38.10
[DCX] Cutting Diameter Maximum (mm):
38.10
[APMX] Maximum Depth of Cut (Decimal Inch):
0.5906
[APMX] Maximum Depth of Cut (mm):
15.00
Number of Inserts:
4
Number of Flutes:
4
Shank Type:
Long Length
Weldon Flat:
No
[DCON] Connection Diameter (mm):
31.75
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
The M-Four double-sided, 4-edge insert with Kyocera’s unique mold technology reduces cutting forces for reduced vibrations
Feature 2:
Low Cutting Forces Equivalent to Positive Inserts
Feature 3:
Improved Surface Finish & Minimized Vibration
ANSI Part Number:
MEW1500S1258154T
ISO Part Number:
MEW1500-S125-8-15-4T
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
LOMU1505…, LOGT1505…
Old Material Number:
8606973
Insert Screw:
SB-4090TRP
Anti-Seize Compound:
P-37
Wrench (for Insert Screw):
DTPM-15
Tightening Torque:
3.5 Nm (for Insert Screw)

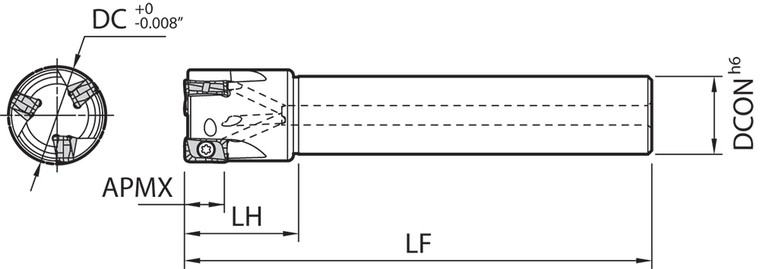

[LF] Functional Length (mm):
203.20
[LH] Head Length (mm):
52.55
Product Notes 1:
Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
[DC] Cutting Diameter (Decimal Inch):
1.5000
[DC] Cutting Diameter (mm):
38.10
[DCN] Cutting Diameter Minimum (Decimal Inch):
1.5000
[DCX] Cutting Diameter Maximum (Decimal Inch):
1.5000
[DCON] Connection Diameter (Decimal Inch):
1.2500
[LF] Functional Length (Decimal Inch):
8.0000
[LH] Head Length (Decimal Inch):
2.0689
