MEW 32M16153T, Modular Head End Mill

MEW 32M16153T, Modular Head End Mill

SKU:
THN05320
|
UPC:
4960664673025
$391.57
(No reviews yet)
Width:
1.97 (in)
Height:
1.97 (in)
Depth:
14.17 (in)
Current Stock:
Adding to cart… The item has been added
Description
MEW 32M16153T 90 Degree Lead, 3 Flute, Coolant-Through Modular Head End Mill with a 32.00mm Cutting Diameter for Shouldering, Slotting, Facing, Plunging Applications
Additional Information
Tool Style:
MEW
Material:
Steel
Application:
Facing|Plunging|Shouldering|Slotting
Hand:
Right-Hand
[KAPR] Tool Entering Angle (Degree):
90
[DCN] Cutting Diameter Minimum (mm):
32.00
[DCX] Cutting Diameter Maximum (mm):
32.00
[APMX] Maximum Depth of Cut (Decimal Inch):
0.5906
[APMX] Maximum Depth of Cut (mm):
15.00
Number of Inserts:
3
Number of Flutes:
3
[H] Shank Height (mm):
24.00
Shank Type:
Modular Connection
Weldon Flat:
No
[DCON] Connection Diameter (mm):
17.00
[DCSFMS] Contact Surface Diameter Machine Side (mm):
30.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
90 degree milling with economical, double-sided 4-edge inserts
Feature 2:
Now including DLC coated inserts for aluminum machining
Feature 3:
Improved toolholder durability and insert installation accuracy
Feature 4:
Compatible with (3) LOMU1505…, LOGT1505… style inserts
ANSI Part Number:
MEW32M16153T
ISO Part Number:
MEW32-M16-15-3T
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
LOMU1505…, LOGT1505…
Old Material Number:
8837961
Insert Screw:
SB-4090TRP
Anti-Seize Compound:
P-37
Wrench (for Insert Screw):
DTPM-15
Tightening Torque:
3.5 Nm (for Insert Screw)

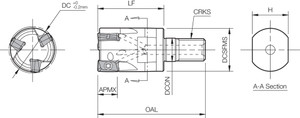

[LF] Functional Length (mm):
40.00
Product Notes 1:
Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
[DC] Cutting Diameter (Decimal Inch):
1.2598
[DC] Cutting Diameter (mm):
32.00
[DCN] Cutting Diameter Minimum (Decimal Inch):
1.2598
[DCX] Cutting Diameter Maximum (Decimal Inch):
1.2598
[H] Shank Height (Decimal Inch):
0.9449
[DCON] Connection Diameter (Decimal Inch):
0.6693
[DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
1.1811
[LF] Functional Length (Decimal Inch):
1.5748
[OAL] Overall Length (mm):
63.00
[OAL] Overall Length (Decimal Inch):
2.4803
