MEW 40S32105T Standard Length Shank, 90 Degree End Mill

MEW 40S32105T Standard Length Shank, 90 Degree End Mill

SKU:
THN05035
|
UPC:
4960664648221
$568.73
(No reviews yet)
Width:
2.36 (in)
Height:
2.36 (in)
Depth:
14.17 (in)
Current Stock:
Adding to cart… The item has been added
Description
MEW 40S32105T Standard Length, Cylindrical Shank, 5 Flute, 90 Degree End Mill with a 40.00mm Cutting Diameter for Shouldering, Facing, Slotting, Plunging Applications
Additional Information
Tool Style:
MEW
Material:
Steel
Application:
Facing|Plunging|Shouldering|Slotting
Hand:
Right-Hand
[KAPR] Tool Entering Angle (Degree):
90
[DCN] Cutting Diameter Minimum (mm):
40.00
[DCX] Cutting Diameter Maximum (mm):
40.00
[APMX] Maximum Depth of Cut (Decimal Inch):
0.3937
[APMX] Maximum Depth of Cut (mm):
10.00
Number of Inserts:
5
Number of Flutes:
5
Shank Type:
Standard Length
Weldon Flat:
No
[DCON] Connection Diameter (mm):
32.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
The M-Four double-sided, 4-edge insert with Kyocera’s unique mold technology reduces cutting forces for reduced vibrations
Feature 2:
Low Cutting Forces Equivalent to Positive Inserts
Feature 3:
Improved Surface Finish & Minimized Vibration
ANSI Part Number:
MEW40S32105T
ISO Part Number:
MEW40-S32-10-5T
US Stock:
3
Worldwide Stock:
13
Compatible Inserts (Partial):
LOMU1004…, LOGT1004…
Old Material Number:
8608760
Insert Screw:
SB-3065TRP
Anti-Seize Compound:
P-37
Wrench (for Insert Screw):
DTPM-8
Tightening Torque:
1.2 Nm (for Insert Screw)

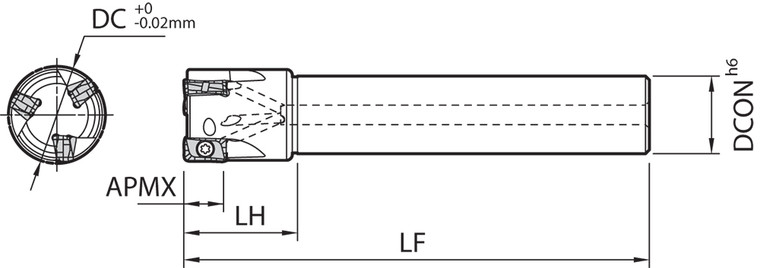

[LF] Functional Length (mm):
150.00
[LH] Head Length (mm):
50.00
Product Notes 1:
Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
[DC] Cutting Diameter (Decimal Inch):
1.5748
[DC] Cutting Diameter (mm):
40.00
[DCN] Cutting Diameter Minimum (Decimal Inch):
1.5748
[DCX] Cutting Diameter Maximum (Decimal Inch):
1.5748
[DCON] Connection Diameter (Decimal Inch):
1.2598
[LF] Functional Length (Decimal Inch):
5.9055
[LH] Head Length (Decimal Inch):
1.9685
