MEWH 050R1543TM (M-FOUR Series), Helical Shell Mill
$1,227.77
(No reviews yet)
Write a Review
MEWH 050R1543TM (M-FOUR Series), Helical Shell Mill
MEWH 050R1543TM (M-FOUR Series), Helical Shell Mill with a 50.00mm Cutting Diameter for Shouldering, Facing Applications
- Tool Style:
- MEWH
- Material:
- Steel
- Application:
- Facing|Shouldering
- Hand:
- Right-Hand
- [KAPR] Tool Entering Angle (Degree):
- 90
- [DCN] Cutting Diameter Minimum (mm):
- 50.00
- [DCX] Cutting Diameter Maximum (mm):
- 50.00
- [APMX] Maximum Depth of Cut (Decimal Inch):
- 2.0866
- [APMX] Maximum Depth of Cut (mm):
- 53.00
- Number of Inserts:
- 12
- Number of Flutes:
- 3

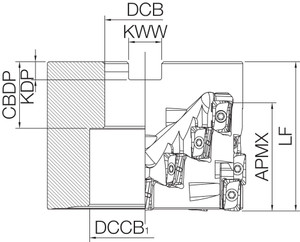

- [DCB] Connection Bore Diameter (mm):
- 22.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- 90 Degree Milling with Double-sided 4-edge Inserts
- Feature 2:
- Low Cutting Forces with Chatter Resistance for Excellent Surface Finish
- Feature 3:
- Excellent Surface Finish and Stable Machining due to Innovative Toolholder Design
- Feature 4:
- Excellent Chip Evacuation
- Feature 5:
- Compatible with: LOMU1505… style inserts
- ANSI Part Number:
- MEWH050R1543TM
- ISO Part Number:
- MEWH050R-15-4-3T-M
- US Stock:
- 0
- Worldwide Stock:
- 3
- Compatible Inserts (Partial):
- LOMU1505…
- Old Material Number:
- 8838754
- Insert Screw:
- SB-4090TRP
- Arbor Bolt:
- HH10X30
- Anti-Seize Compound:
- P-37
- Wrench (for Insert Screw):
- DTPM-15
- Tightening Torque:
- 3.5 Nm (for Insert Screw)
- [LF] Functional Length (mm):
- 70.00
- Product Notes 1:
- Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
- [DC] Cutting Diameter (Decimal Inch):
- 1.9685
- [DC] Cutting Diameter (mm):
- 50.00
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 1.9685
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 1.9685
- [DCB] Connection Bore Diameter (Decimal Inch):
- 0.8661
- [LF] Functional Length (Decimal Inch):
- 2.7559
