MFH 050R144TM, MFH-RAPTOR, Mini 50.00mm Cutting Diameter, High-Feed Face Mill
$572.42
(No reviews yet)
Write a Review
MFH 050R144TM, MFH-RAPTOR, Mini 50.00mm Cutting Diameter, High-Feed Face Mill
MFH 050R144TM, MFH-RAPTOR High-Feed Face Mill, 10 Degree Lead Angle, Standard Pitch Face Mill with a 50.00mm Cutting Diameter and Metric Bore Diameter for Facing, Shouldering, Slotting, Ramping, Helical Milling, Plunging Applications
- Tool Style:
- MFH
- Material:
- Steel
- Application:
- Facing|Helical Milling|Plunging|Ramping|Shouldering|Slotting
- Hand:
- Right-Hand

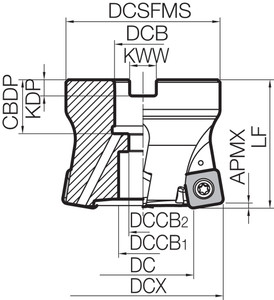

- [KAPR] Tool Entering Angle (Degree):
- 10
- [DCN] Cutting Diameter Minimum (mm):
- 27.00
- [DCX] Cutting Diameter Maximum (mm):
- 50.00
- [APMX] Maximum Depth of Cut (Decimal Inch):
- 0.0787 (GM), 0.0787 (GH), 0.1969 (LD), 0.0787 (FL)
- [APMX] Maximum Depth of Cut (mm):
- 2.00 (GM), 2.00 (GH), 5.00 (LD), 2.00 (FL)
- Cutter Pitch:
- Standard Pitch
- Number of Inserts:
- 4
- Number of Flutes:
- 4
- Bore Diameter (Inch/Metric):
- Metric
- [DCB] Connection Bore Diameter (mm):
- 22.00
- [DCSFMS] Contact Surface Diameter Machine Side (mm):
- 47.00
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- 10 Degree Lead Angle High Feed Face Mill
- Feature 2:
- Application: Facing, Shouldering, Slotting, Ramping, Helical Milling, Plunging
- Feature 3:
- Clamp Screw Insert Holding Design
- Feature 4:
- Compatible with (4) SOMT14… Inserts
- Feature 5:
- Reduced chattering with convex cutting edge design controls initial impact when entering the workpiece
- ANSI Part Number:
- MFH050R144TM
- ISO Part Number:
- MFH050R-14-4T-M
- US Stock:
- 4
- Worldwide Stock:
- 14
- Compatible Inserts (Partial):
- SOMT14…
- Old Material Number:
- 8860917
- Insert Screw:
- SB-50120TRP
- Arbor Bolt:
- W10×30
- Anti-Seize Compound:
- P-37
- Wrench (for Insert Screw):
- TTP-20
- Tightening Torque:
- 4.5 Nm (for Insert Screw)
- [LF] Functional Length (mm):
- 50.00
- Product Notes:
- The Cutting Diameter (DCN) value shown is when GM inserts are installed in the cutter body. For GH Inserts: DC = 1.0630", FL Inserts: DC = 1.0630", LD Inserts: DC = 1.2598"
- Product Notes 1:
- Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
- [DC] Cutting Diameter (Decimal Inch):
- 1.0630 - 1.9685
- [DC] Cutting Diameter (mm):
- 27.00 - 50.00
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 1.0630
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 1.9685
- [DCB] Connection Bore Diameter (Decimal Inch):
- 0.8661
- [DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
- 1.8504
- [LF] Functional Length (Decimal Inch):
- 1.9685
- Series Description (PeopleSoft):
- MFH-Raptor Milling
- Series Description:
- MFH-Raptor Milling
