MFH 080R048TM, MFH-Max, 80.00mm Cutting Diameter Maximum, High-Feed Face Mill
$808.50
(No reviews yet)
Write a Review
MFH 080R048TM, MFH-Max, 80.00mm Cutting Diameter Maximum, High-Feed Face Mill
MFH 080R048TM, MFH-Max High-Feed Face Mill, 90 Degree Lead Angle, Standard Pitch Face Mill with a 80.00mm Cutting Diameter Maximum and Metric Bore Diameter for Helical Milling, Ramping, and Shouldering Applications
- Tool Style:
- MFH
- Material:
- Steel
- Application:
- Helical Milling|High Feed|Ramping|Shouldering
- Hand:
- Right-Hand

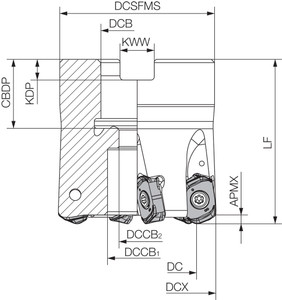

- [KAPR] Tool Entering Angle (Degree):
- 90
- [DCN] Cutting Diameter Minimum (mm):
- 69.00
- [DCX] Cutting Diameter Maximum (mm):
- 80.00
- [APMX] Maximum Depth of Cut (Decimal Inch):
- 0.0984
- [APMX] Maximum Depth of Cut (mm):
- 2.50
- Cutter Pitch:
- Standard Pitch
- Number of Inserts:
- 8
- Number of Flutes:
- 8
- Bore Diameter (Inch/Metric):
- Metric
- [DCB] Connection Bore Diameter (mm):
- 27.00
- [DCSFMS] Contact Surface Diameter Machine Side (mm):
- 76.00
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- Large D.O.C. Dramatically Improves Machining Efficiency
- Feature 2:
- Excellent Performance in a Wide Range of Applications, including Automotive Parts, Difficult-to-cut Materials, and Molds
- Feature 3:
- Achieves high efficiency machining in various shouldering, slotting, helical milling, and ramping applications
- Feature 4:
- Convex cutting edge design reduces impact when entering workpiece
- ANSI Part Number:
- MFH080R048TM
- ISO Part Number:
- MFH080R-04-8T-M
- US Stock:
- 0
- Worldwide Stock:
- 15
- Compatible Inserts (Partial):
- LOMU040410ERGM
- Old Material Number:
- 8866880
- Insert Screw:
- SB-3575TRP
- Arbor Bolt:
- HH12X35*
- Anti-Seize Compound:
- P-37
- Wrench (for Insert Screw):
- DTPM-10
- Tightening Torque:
- 2.0 Nm (for Insert Screw)
- [LF] Functional Length (mm):
- 63.00
- Product Notes 1:
- *If through-spindle coolant is required, order arbor bolt HH12X35H (sold separately).
- Product Notes 2:
- Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
- [DC] Cutting Diameter (Decimal Inch):
- 2.7165 - 3.1496
- [DC] Cutting Diameter (mm):
- 69.00 - 80.00
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 2.7165
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 3.1496
- [DCB] Connection Bore Diameter (Decimal Inch):
- 1.0630
- [DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
- 2.9921
- [LF] Functional Length (Decimal Inch):
- 2.4803
