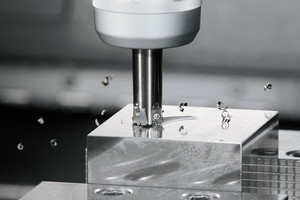

MFH 1000S100034T7, MFH-Mini, Long Length Shank, High-Feed End Mill
$491.33
(No reviews yet)
Write a Review
MFH 1000S100034T7, MFH-Mini, Long Length Shank, High-Feed End Mill
MFH 1000S100034T7, Long Length, Cylindrical Shank, 4 Flute, 10 Degree High-Feed End Mill with a 1.0000" Cutting Diameter for Shouldering, Facing, Slotting, Ramping, Helical Milling, Plunging Applications
- Tool Style:
- MFH
- Material:
- Steel
- Application:
- Facing|Helical Milling|Plunging|Ramping|Shouldering|Slotting
- Hand:
- Right-Hand
- [KAPR] Tool Entering Angle (Degree):
- 10
- [DCN] Cutting Diameter Minimum (mm):
- 17.40
- [DCX] Cutting Diameter Maximum (mm):
- 25.40
- [APMX] Maximum Depth of Cut (Decimal Inch):
- 0.0394
- [APMX] Maximum Depth of Cut (mm):
- 1.00
- Number of Inserts:
- 4
- Number of Flutes:
- 4
- Shank Type:
- Long Length
- Weldon Flat:
- No
- [DCON] Connection Diameter (mm):
- 25.40
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- inch
- Feature 1:
- Reduce cycle time during roughing applications
- Feature 2:
- Economical Inserts with 4 cutting edges
- Feature 3:
- MFH-Mini controls chip biting with convex cutting edge design
- Feature 4:
- Fine pitch availability for efficient machining
- Feature 5:
- Compatible with (4) LOGU03… style inserts
- ANSI Part Number:
- MFH1000S100034T7
- ISO Part Number:
- MFH1000-S100-03-4T-7
- US Stock:
- 1000
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- LOGU03…
- Old Material Number:
- 8607012
- Insert Screw:
- SB-3065TRP
- Anti-Seize Compound:
- P-37
- Wrench (for Insert Screw):
- DTPM-8
- Tightening Torque:
- 1.2 Nm (for Insert Screw)
- [LF] Functional Length (mm):
- 177.80
- [LH] Head Length (mm):
- 101.60
- Product Notes 1:
- Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
- [DC] Cutting Diameter (Decimal Inch):
- 0.6850 - 1.0000
- [DC] Cutting Diameter (mm):
- 17.40 - 25.40
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 0.6850
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 1.0000
- [DCON] Connection Diameter (Decimal Inch):
- 1.0000
- [LF] Functional Length (Decimal Inch):
- 7.0000
- [LH] Head Length (Decimal Inch):
- 4.0000
