MFH 16W16014T, MFH-Micro, Standard Length Shank, High-Feed End Mill

MFH 16W16014T, MFH-Micro, Standard Length Shank, High-Feed End Mill

SKU:
THN08253
|
UPC:
4960664778447
$333.92
(No reviews yet)
Width:
1.54 (in)
Height:
1.54 (in)
Depth:
8.27 (in)
Current Stock:
Adding to cart… The item has been added
Description

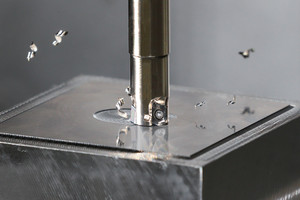

MFH 16W16014T, Standard Length, Weldon Shank, 4 Flute, 10 Degree High-Feed End Mill with a 16.00mm Cutting Diameter for Shouldering, Facing, Slotting, Ramping, Helical Milling, Plunging Applications
Additional Information
Tool Style:
MFH
Material:
Steel
Application:
Facing|Helical Milling|Plunging|Ramping|Shouldering|Slotting
Hand:
Right-Hand
[KAPR] Tool Entering Angle (Degree):
10
[DCN] Cutting Diameter Minimum (mm):
12.20
[DCX] Cutting Diameter Maximum (mm):
16.00
[APMX] Maximum Depth of Cut (Decimal Inch):
0.0197
[APMX] Maximum Depth of Cut (mm):
0.50
Number of Inserts:
4
Number of Flutes:
4
Shank Type:
Standard Length
Weldon Flat:
Yes
[DCON] Connection Diameter (mm):
16.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Reduce cycle time during roughing applications
Feature 2:
Low resistance and durable design aids in chatter resistant machining
Feature 3:
Molded convex cutting edge controls initial impact when entering the workpiece
Feature 4:
Wide range of machining applications
Feature 5:
Can replace solid end mills to reduce machining costs
ANSI Part Number:
MFH16W16014T
ISO Part Number:
MFH16-W16-01-4T
US Stock:
0
Worldwide Stock:
44
Compatible Inserts (Partial):
LPGT01…
Old Material Number:
8847282
Insert Screw:
SB-1840TRP
Anti-Seize Compound:
P-37
Wrench (for Insert Screw):
FTP-6
Tightening Torque:
0.5 Nm (for Insert Screw)
[LF] Functional Length (mm):
73.00
[LH] Head Length (mm):
25.00
Product Notes 1:
Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
[DC] Cutting Diameter (Decimal Inch):
0.4803 - 0.6299
[DC] Cutting Diameter (mm):
12.20 - 16.00
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.4803
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.6299
[DCON] Connection Diameter (Decimal Inch):
0.6299
[LF] Functional Length (Decimal Inch):
2.8740
[LH] Head Length (Decimal Inch):
0.9843
Series Description (PeopleSoft):
MFH-Micro Milling
