MFH 28S25102T300, MFH-RAPTOR, Extra Long Length Shank, High-Feed End Mill

MFH 28S25102T300, MFH-RAPTOR, Extra Long Length Shank, High-Feed End Mill

SKU:
THN07643
|
UPC:
4960664717439
$435.46
(No reviews yet)
Width:
2.36 (in)
Height:
2.36 (in)
Depth:
14.17 (in)
Current Stock:
Adding to cart… The item has been added
Description
MFH 28S25102T300, Extra Long Length, Cylindrical Shank, 2 Flute, 10 Degree High-Feed End Mill with a 28.00mm Cutting Diameter for Shouldering, Facing, Slotting, Ramping, Helical Milling, Plunging Applications
Additional Information
Tool Style:
MFH
Material:
Steel
Application:
Facing|Helical Milling|Plunging|Ramping|Shouldering|Slotting
Hand:
Right-Hand
[KAPR] Tool Entering Angle (Degree):
10
[DCN] Cutting Diameter Minimum (mm):
11.00
[DCX] Cutting Diameter Maximum (mm):
28.00
[APMX] Maximum Depth of Cut (Decimal Inch):
0.0591 (GM/GH), 0.1378 (LD), 0.0591 (FL)
[APMX] Maximum Depth of Cut (mm):
1.50 (GM/GH), 3.50 (LD), 1.50 (FL)
Number of Inserts:
2
Number of Flutes:
2
Shank Type:
Extra-Long Length
Weldon Flat:
No
[DCON] Connection Diameter (mm):
25.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Reduce cycle time during roughing applications
Feature 2:
Reduced chattering with convex cutting edge design
Feature 3:
3 different insert designs available for a variety of machining operations
Feature 4:
LD chipbreaker can be used for both large D.O.C. and high-feed machining
Feature 5:
Compatible with (2) SOMT10… style inserts
ANSI Part Number:
MFH28S25102T300
ISO Part Number:
MFH28-S25-10-2T-300
US Stock:
0
Worldwide Stock:
2
Compatible Inserts (Partial):
SOMT10…
Old Material Number:
8841721
Insert Screw:
SB-4075TRP
Anti-Seize Compound:
P-37
Wrench (for Insert Screw):
DTPM-15
Tightening Torque:
3.5 Nm (for Insert Screw)

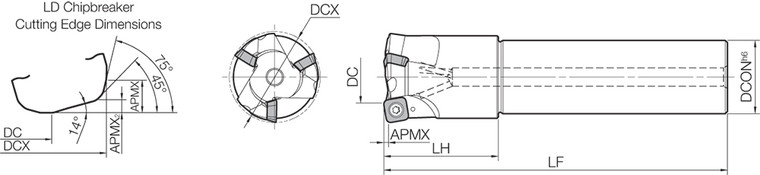

[LF] Functional Length (mm):
300.00
[LH] Head Length (mm):
40.00
Product Notes:
The Cutting Diameter (DCN) value shown is when GM inserts are installed in the cutter body. For GH Inserts: DC =  0.4331", FL Inserts: DC =  0.6102", LD Inserts: DC =  0.5709"
Product Notes 1:
Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
[DC] Cutting Diameter (Decimal Inch):
0.4331 - 1.1024
[DC] Cutting Diameter (mm):
11.00 - 28.00
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.4331
[DCX] Cutting Diameter Maximum (Decimal Inch):
1.1024
[DCON] Connection Diameter (Decimal Inch):
0.9843
[LF] Functional Length (Decimal Inch):
11.8110
[LH] Head Length (Decimal Inch):
1.5748
