MFPN 45063RS324T Standard Length Shank, 45 Degree End Mill

MFPN 45063RS324T Standard Length Shank, 45 Degree End Mill

SKU:
THN04444
|
UPC:
4960664626328
$482.31
(No reviews yet)
Width:
3.66 (in)
Height:
3.82 (in)
Depth:
7.56 (in)
Current Stock:
Adding to cart… The item has been added
Description
MFPN 45063RS324T Standard Length, Cylindrical Shank, 4 Flute, 45 Degree End Mill with a 63.00mm Cutting Diameter for Facing, Chamfering Applications
Additional Information
Tool Style:
MFPN
Material:
Steel
Application:
Chamfering|Facing
Hand:
Right-Hand

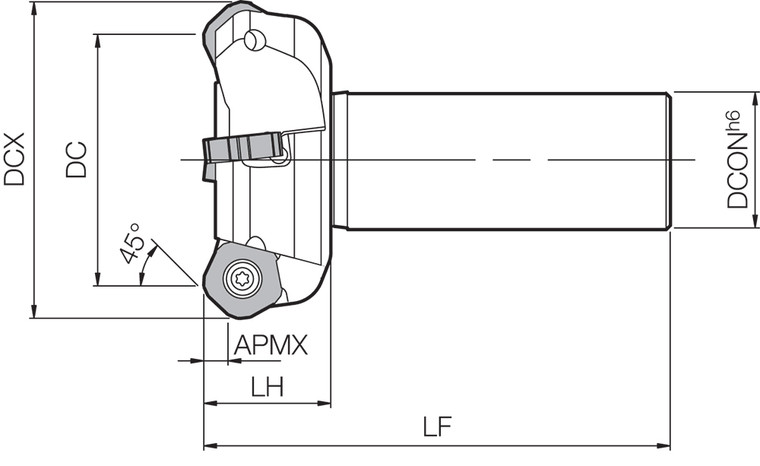

[KAPR] Tool Entering Angle (Degree):
45
[DCN] Cutting Diameter Minimum (mm):
63.00
[DCX] Cutting Diameter Maximum (mm):
76.00
[APMX] Maximum Depth of Cut (Decimal Inch):
0.2362 (GM/SM/GH), 0.1969 (GL), 0.1181 (W)
[APMX] Maximum Depth of Cut (mm):
6.00 (GM/SM/GH), 5.00 (GL), 3.00 (W)
Number of Inserts:
4
Number of Flutes:
4
Shank Type:
Standard Length
Weldon Flat:
No
[DCON] Connection Diameter (mm):
32.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Right-Hand, Standard Length, 45 Lead Angle End Mill
Feature 2:
Facing, Chamfering Applications
Feature 3:
Compatible with PNMU1205…, PNEU1205… Inserts
ANSI Part Number:
MFPN45063RS324T
ISO Part Number:
MFPN45063R-S32-4T
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
PNMU1205…, PNEU1205…
Old Material Number:
8835298
Insert Screw:
SB-50140TR
Anti-Seize Compound:
P-37
Wrench (for Insert Screw):
TTW-15
Tightening Torque:
3.5 Nm (for Insert Screw)
[LF] Functional Length (mm):
110.00
[LH] Head Length (mm):
30.00
Product Notes 1:
Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
[DC] Cutting Diameter (Decimal Inch):
2.4803 - 2.9921
[DC] Cutting Diameter (mm):
63.00 - 76.00
[DCN] Cutting Diameter Minimum (Decimal Inch):
2.4803
[DCX] Cutting Diameter Maximum (Decimal Inch):
2.9921
[DCON] Connection Diameter (Decimal Inch):
1.2598
[LF] Functional Length (Decimal Inch):
4.3307
[LH] Head Length (Decimal Inch):
1.1811
Series Description (PeopleSoft):
MFPN Milling
