MFPN 45080R8T Inch Bore Diameter, 45 Degree Face Mill
$790.07
(No reviews yet)
Write a Review
MFPN 45080R8T Inch Bore Diameter, 45 Degree Face Mill
MFPN 45080R8T Inch Bore Diameter, Extra-Fine Pitch, 8 Flute, 45 Degree Face Mill with a 80.00mm Cutting Diameter for Facing, Chamfering Applications

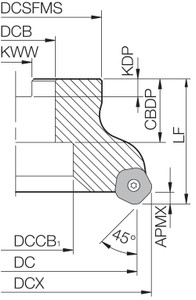

- Tool Style:
- MFPN
- Material:
- Steel
- Application:
- Chamfering|Facing
- Hand:
- Right-Hand
- [KAPR] Tool Entering Angle (Degree):
- 45
- [DCN] Cutting Diameter Minimum (mm):
- 80.00
- [DCX] Cutting Diameter Maximum (mm):
- 93.00
- [APMX] Maximum Depth of Cut (Decimal Inch):
- 0.2362 (GM/SM/GH), 0.1969 (GL), 0.1181 (W)
- [APMX] Maximum Depth of Cut (mm):
- 6.00 (GM/SM/GH), 5.00 (GL), 3.00 (W)
- Cutter Pitch:
- Extra-Fine Pitch
- Number of Inserts:
- 8
- Number of Flutes:
- 8
- Bore Diameter (Inch/Metric):
- Inch
- [DCB] Connection Bore Diameter (mm):
- 25.40
- [DCSFMS] Contact Surface Diameter Machine Side (mm):
- 60.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- 45 Degree Lead Angle Face Mill
- Feature 2:
- Application: Facing, Chamfering
- Feature 3:
- Economical double-sided 10-edge inserts
- Feature 4:
- Reduced chattering with low cutting forces due to curved cutting edge design
- Feature 5:
- Suppresses fracturing with dual angle edge design
- ANSI Part Number:
- MFPN45080R8T
- ISO Part Number:
- MFPN45080R-8T
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- PNMU1205ANER…, PNEU1205ANER…
- Old Material Number:
- 8831653
- Insert Screw:
- SB-40140TRN
- Arbor Bolt:
- HH12X35
- Anti-Seize Compound:
- P-37
- Wrench (for Insert Screw):
- DTM-15
- Tightening Torque:
- 3.5 Nm (for Insert Screw)
- [LF] Functional Length (mm):
- 50.00
- Product Notes 1:
- Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
- [DC] Cutting Diameter (Decimal Inch):
- 3.1496 - 3.6614
- [DC] Cutting Diameter (mm):
- 80.00 - 93.00
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 3.1496
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 3.6614
- [DCB] Connection Bore Diameter (Decimal Inch):
- 1.0000
- [DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
- 2.3622
- [LF] Functional Length (Decimal Inch):
- 1.9685
