MFPN 45080RS325T Standard Length Shank, 45 Degree End Mill
$551.15
(No reviews yet)
Write a Review
MFPN 45080RS325T Standard Length Shank, 45 Degree End Mill
MFPN 45080RS325T Standard Length, Cylindrical Shank, 5 Flute, 45 Degree End Mill with a 80.00mm Cutting Diameter for Facing, Chamfering Applications
- Tool Style:
- MFPN
- Material:
- Steel
- Application:
- Chamfering|Facing
- Hand:
- Right-Hand

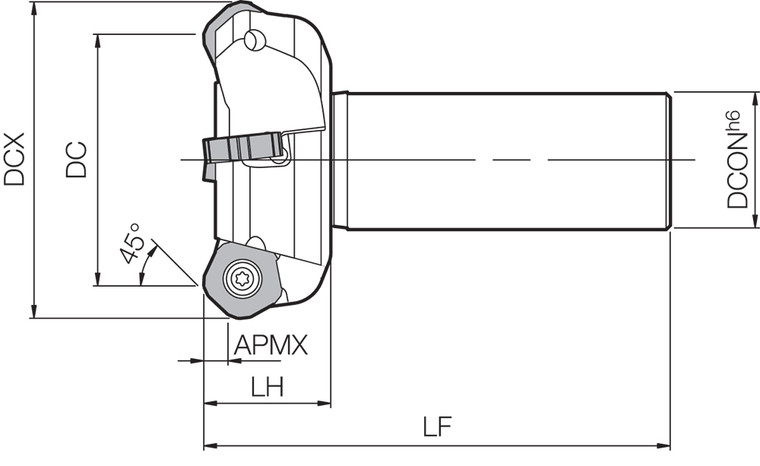

- [KAPR] Tool Entering Angle (Degree):
- 45
- [DCN] Cutting Diameter Minimum (mm):
- 80.00
- [DCX] Cutting Diameter Maximum (mm):
- 93.00
- [APMX] Maximum Depth of Cut (Decimal Inch):
- 0.2362 (GM/SM/GH), 0.1969 (GL), 0.1181 (W)
- [APMX] Maximum Depth of Cut (mm):
- 6.00 (GM/SM/GH), 5.00 (GL), 3.00 (W)
- Number of Inserts:
- 5
- Number of Flutes:
- 5
- Shank Type:
- Standard Length
- Weldon Flat:
- No
- [DCON] Connection Diameter (mm):
- 32.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- Right-Hand, Standard Length, 45 Lead Angle End Mill
- Feature 2:
- Facing, Chamfering Applications
- Feature 3:
- Compatible with PNMU1205…, PNEU1205… Inserts
- ANSI Part Number:
- MFPN45080RS325T
- ISO Part Number:
- MFPN45080R-S32-5T
- US Stock:
- 0
- Worldwide Stock:
- 29
- Compatible Inserts (Partial):
- PNMU1205…, PNEU1205…
- Old Material Number:
- 8609120
- Insert Screw:
- SB-50140TR
- Anti-Seize Compound:
- P-37
- Wrench (for Insert Screw):
- TTW-15
- Tightening Torque:
- 3.5 Nm (for Insert Screw)
- [LF] Functional Length (mm):
- 110.00
- [LH] Head Length (mm):
- 30.00
- Product Notes 1:
- Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
- [DC] Cutting Diameter (Decimal Inch):
- 3.1496 - 3.6614
- [DC] Cutting Diameter (mm):
- 80.00 - 93.00
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 3.1496
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 3.6614
- [DCON] Connection Diameter (Decimal Inch):
- 1.2598
- [LF] Functional Length (Decimal Inch):
- 4.3307
- [LH] Head Length (Decimal Inch):
- 1.1811
