MFPN 458000R14T Inch Bore Diameter, 45 Degree Face Mill
$2,127.86
(No reviews yet)
Write a Review
MFPN 458000R14T Inch Bore Diameter, 45 Degree Face Mill
MFPN 458000R14T Inch Bore Diameter, Fine Pitch, 14 Flute, 45 Degree Face Mill with a 8.0000" Cutting Diameter for Facing, Chamfering Applications
- Tool Style:
- MFPN
- Material:
- Steel
- Application:
- Chamfering|Facing
- Hand:
- Right-Hand

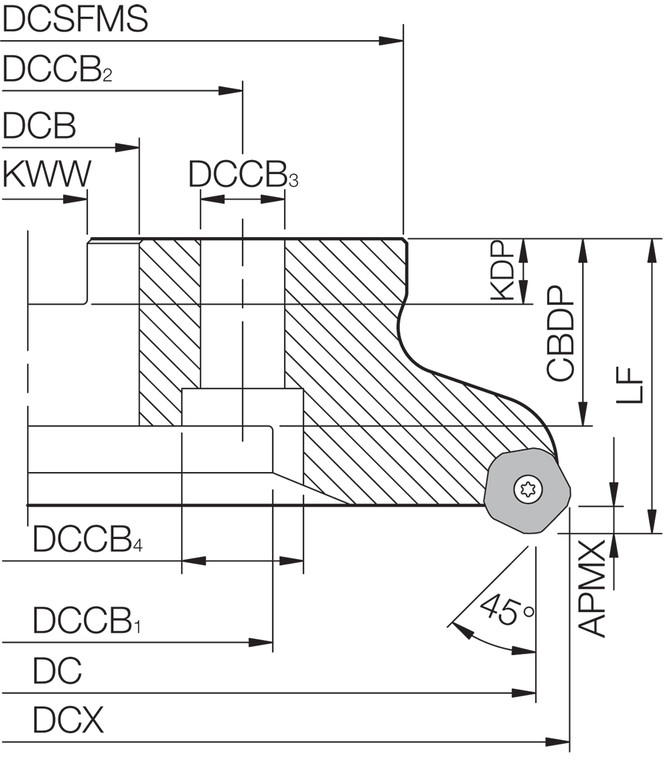

- [KAPR] Tool Entering Angle (Degree):
- 45
- [DCN] Cutting Diameter Minimum (mm):
- 203.20
- [DCX] Cutting Diameter Maximum (mm):
- 211.20
- [APMX] Maximum Depth of Cut (Decimal Inch):
- 0.2362 (GM/SM/GH), 0.1969 (GL), 0.1181 (W)
- [APMX] Maximum Depth of Cut (mm):
- 6.00 (GM/SM/GH), 5.00 (GL), 3.00 (W)
- Cutter Pitch:
- Fine Pitch
- Number of Inserts:
- 14
- Number of Flutes:
- 14
- Bore Diameter (Inch/Metric):
- Inch
- [DCB] Connection Bore Diameter (mm):
- 63.50
- [DCSFMS] Contact Surface Diameter Machine Side (mm):
- 142.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- inch
- Feature 1:
- 45 Degree Lead Angle Face Mill
- Feature 2:
- Application: Facing, Chamfering
- Feature 3:
- Economical double-sided 10-edge inserts
- Feature 4:
- Reduced chattering with low cutting forces due to curved cutting edge design
- Feature 5:
- Suppresses fracturing with dual angle edge design
- ANSI Part Number:
- MFPN458000R14T
- ISO Part Number:
- MFPN458000R-14T
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- PNMU1205ANER…, PNEU1205ANER…
- Old Material Number:
- 8606115
- Insert Screw:
- SB-50140TR
- Anti-Seize Compound:
- P-37
- Wrench (for Insert Screw):
- TTW-15
- Tightening Torque:
- 4.2 Nm (for Insert Screw)
- [LF] Functional Length (mm):
- 63.00
- Product Notes 1:
- Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
- [DC] Cutting Diameter (Decimal Inch):
- 8.0000 - 8.3150
- [DC] Cutting Diameter (mm):
- 203.20 - 211.20
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 8.0000
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 8.3150
- [DCB] Connection Bore Diameter (Decimal Inch):
- 2.5000
- [DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
- 5.5906
- [LF] Functional Length (Decimal Inch):
- 2.4803
