MFWN 905000R12T Inch Bore Diameter, 90 Degree Face Mill
$1,352.53
(No reviews yet)
Write a Review

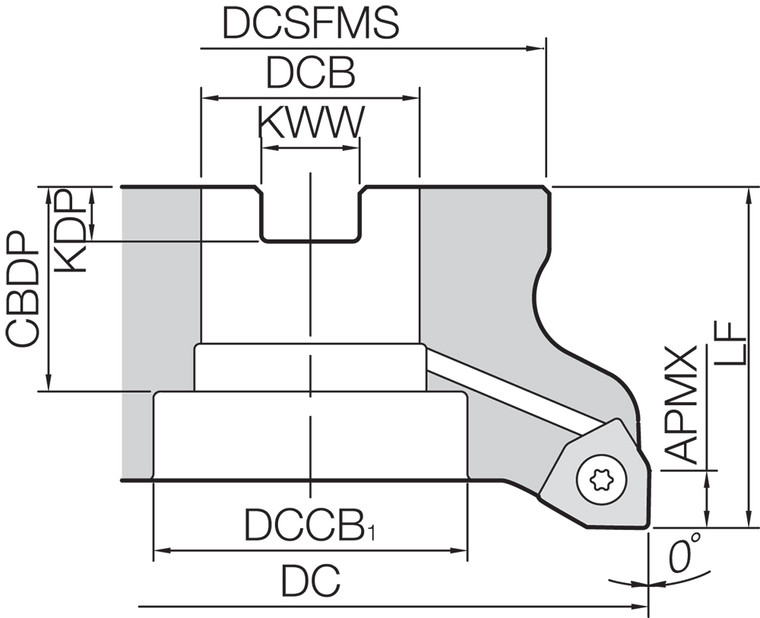

MFWN 905000R12T Inch Bore Diameter, 90 Degree Face Mill
MFWN 905000R12T Inch Bore Diameter, Extra-Fine Pitch, 12 Flute, 90 Degree Face Mill with a 5.0000" Cutting Diameter for Shouldering, Facing, Slotting, Plunging Applications
- Tool Style:
- MFWN
- Material:
- Steel
- Application:
- Facing|Plunging|Shouldering|Slotting
- Hand:
- Right-Hand
- [KAPR] Tool Entering Angle (Degree):
- 90
- [DCN] Cutting Diameter Minimum (mm):
- 127.00
- [DCX] Cutting Diameter Maximum (mm):
- 127.00
- [APMX] Maximum Depth of Cut (Decimal Inch):
- 0.3150
- [APMX] Maximum Depth of Cut (mm):
- 8.00
- Cutter Pitch:
- Extra-Fine Pitch
- Number of Inserts:
- 12
- Number of Flutes:
- 12
- Bore Diameter (Inch/Metric):
- Inch
- [DCB] Connection Bore Diameter (mm):
- 38.10
- [DCSFMS] Contact Surface Diameter Machine Side (mm):
- 87.00
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- inch
- Feature 1:
- 90 Degree Lead Angle Face Mill
- Feature 2:
- Application: Shouldering, Facing, Slotting, Plunging
- Feature 3:
- Economical double-sided 6-edge inserts
- Feature 4:
- Sharp cutting due to lower cutting forces
- Feature 5:
- Resistant to chattering and applicable to long overhang
- ANSI Part Number:
- MFWN905000R12T
- ISO Part Number:
- MFWN905000R-12T
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- WNEU080608EN-GL, WNMU080608EN-GM, WNMU080608EN-SM, WNMU080608EN-GH, WNGT080608FN-AM
- Old Material Number:
- 8606141
- Insert Screw:
- SB-40140TRN
- Anti-Seize Compound:
- P-37
- Wrench (for Insert Screw):
- DTM-15
- Tightening Torque:
- 3.5 Nm (for Insert Screw)
- [LF] Functional Length (mm):
- 63.00
- Product Notes 1:
- Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
- [DC] Cutting Diameter (Decimal Inch):
- 5.0000
- [DC] Cutting Diameter (mm):
- 127.00
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 5.0000
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 5.0000
- [DCB] Connection Bore Diameter (Decimal Inch):
- 1.5000
- [DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
- 3.4252
- [LF] Functional Length (Decimal Inch):
- 2.4803
