Micro VNTR 06011 KW10 Grade Uncoated Carbide, Micro Threading Bar

Micro VNTR 06011 KW10 Grade Uncoated Carbide, Micro Threading Bar

SKU:
TWE07182
|
UPC:
4960664221448
$44.30
(No reviews yet)
Width:
2.95 (in)
Height:
0.39 (in)
Depth:
3.07 (in)
Current Stock:
Adding to cart… The item has been added
Description
Micro VNTR 06011 KW10 Grade Uncoated Carbide, Micro Threading Bar with a 6.00mm Minimum Bore Diameter for (N) Non-Ferrous Metals, (K) Cast Iron
Additional Information

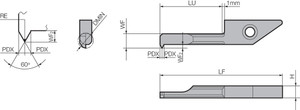

Tool Style:
VNT
Insert Grade:
KW10
Material:
Carbide
Coating Process:
Uncoated
[RE] Corner Radius (mm):
0.05
Application:
Micro Internal Threading
Hand:
Right-Hand
[LU] Usable Length (mm):
11.00
Thread Type:
Internal
Primary Workpiece Material:
(K) Cast Iron|(N) Non-Ferrous Materials
[DMIN] Minimum Bore Diameter (mm):
6.00
[H] Shank Height (mm):
3.90
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
KW10 Grade Micro Threading Tip-Bar for Steel
Feature 2:
Minimum Bore Diameter 6.00mm
Feature 3:
Compatible with SVNR…, SVNSR….S…-SVNR…Holders
ANSI Part Number:
VNTR06011KW10
ISO Part Number:
VNTR060-11
US Stock:
0
Worldwide Stock:
0
Old Material Number:
8803897
Compatible Toolholder (Partial):
SVNR…, SVNSR….S…-SVNR…
[LF] Functional Length (mm):
30.80
[RE] Corner Radius:
0.002"
[LU] Usable Length (Decimal Inch):
0.4331
[DMIN] Minimum Bore Diameter (Decimal Inch):
0.2362
[H] Shank Height (Decimal Inch):
0.1535
[LF] Functional Length (Decimal Inch):
1.2126
