MRX 20W20102T RAD-6 Series, Standard Length Shank, Radius End Mill
$318.92
(No reviews yet)
Write a Review
MRX 20W20102T RAD-6 Series, Standard Length Shank, Radius End Mill
MRX 20W20102T RAD-6 Series, 2 Flute, Standard Length Shank, Radius End Mill with a 20.00mm Cutting Diameter for Shouldering, Pocketing, Facing, Ramping Applications
- Tool Style:
- MRX
- Material:
- Steel
- Application:
- Facing|Pocketing|Profiling|Ramping|Shouldering|Slotting
- Hand:
- Right-Hand
- [KAPR] Tool Entering Angle (Degree):
- n/a
- [DCN] Cutting Diameter Minimum (mm):
- 20.00
- [DCX] Cutting Diameter Maximum (mm):
- 20.00
- [APMX] Maximum Depth of Cut (Decimal Inch):
- 0.1969
- [APMX] Maximum Depth of Cut (mm):
- 5.00
- Number of Inserts:
- 2
- Number of Flutes:
- 2
- Shank Type:
- Standard Length
- Weldon Flat:
- Yes
- [DCON] Connection Diameter (mm):
- 20.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- Economical positive round inserts with 6 usable cutting edges
- Feature 2:
- Low cutting force with Kyocera's helical cutting edge design
- Feature 3:
- CA6535 and PR1535 insert grades available for difficult-to-cut material
- Feature 4:
- R4, R5, R6 and R8 radius sizes available
- Feature 5:
- Flat lock structure to hold insert firmly in place
- ANSI Part Number:
- MRX20W20102T
- ISO Part Number:
- MRX20-W20-10-2T
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- RPMT10T3M0ER-GM, RPGT10T3M0ER-GM, RPGT10T3M0ER-SM, RPMT10T3M0EN-GH
- Old Material Number:
- 8839155
- Insert Screw:
- SB-3070TRP
- Anti-Seize Compound:
- P-37
- Wrench (for Insert Screw):
- DTPM-10
- Tightening Torque:
- 2.0 Nm (for Insert Screw)

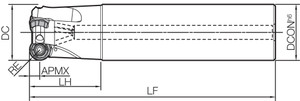

- [LF] Functional Length (mm):
- 91.00
- [LH] Head Length (mm):
- 40.00
- Product Notes 1:
- Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
- [DC] Cutting Diameter (Decimal Inch):
- 0.7874
- [DC] Cutting Diameter (mm):
- 20.00
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 0.7874
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 0.7874
- [DCON] Connection Diameter (Decimal Inch):
- 0.7874
- [LF] Functional Length (Decimal Inch):
- 3.5827
- [LH] Head Length (Decimal Inch):
- 1.5748
