MRX 32S32123T RAD-6 Series, Standard Length Shank, Radius End Mill
$387.51
(No reviews yet)
Write a Review
MRX 32S32123T RAD-6 Series, Standard Length Shank, Radius End Mill
MRX 32S32123T RAD-6 Series, 3 Flute, Standard Length Shank, Radius End Mill with a 32.00mm Cutting Diameter for Shouldering, Pocketing, Facing, Ramping Applications
- Tool Style:
- MRX
- Material:
- Steel
- Application:
- Facing|Pocketing|Profiling|Ramping|Shouldering|Slotting
- Hand:
- Right-Hand
- [KAPR] Tool Entering Angle (Degree):
- n/a
- [DCN] Cutting Diameter Minimum (mm):
- 32.00
- [DCX] Cutting Diameter Maximum (mm):
- 32.00
- [APMX] Maximum Depth of Cut (Decimal Inch):
- 0.2362
- [APMX] Maximum Depth of Cut (mm):
- 6.00
- Number of Inserts:
- 3
- Number of Flutes:
- 3
- Shank Type:
- Standard Length
- Weldon Flat:
- No
- [DCON] Connection Diameter (mm):
- 32.00
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- Economical positive round inserts with 6 usable cutting edges
- Feature 2:
- Low cutting force with Kyocera's helical cutting edge design
- Feature 3:
- CA6535 and PR1535 insert grades available for difficult-to-cut material
- Feature 4:
- R4, R5, R6 and R8 radius sizes available
- Feature 5:
- Flat lock structure to hold insert firmly in place
- ANSI Part Number:
- MRX32S32123T
- ISO Part Number:
- MRX32-S32-12-3T
- US Stock:
- 7
- Worldwide Stock:
- 4
- Compatible Inserts (Partial):
- RPMT1204M0ER-GM, RPGT1204M0ER-GM, RPGT1204M0ER-SM, RPMT1204M0EN-GH, RPMW1204M0TN
- Old Material Number:
- 8839162
- Insert Screw:
- SB-4090TRPN
- Anti-Seize Compound:
- P-37
- Wrench (for Insert Screw):
- DTPM-15
- Tightening Torque:
- 3.5 Nm (for Insert Screw)

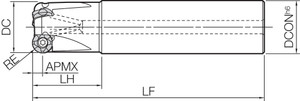

- [LF] Functional Length (mm):
- 140.00
- [LH] Head Length (mm):
- 40.00
- Product Notes 1:
- Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
- [DC] Cutting Diameter (Decimal Inch):
- 1.2598
- [DC] Cutting Diameter (mm):
- 32.00
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 1.2598
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 1.2598
- [DCON] Connection Diameter (Decimal Inch):
- 1.2598
- [LF] Functional Length (Decimal Inch):
- 5.5118
- [LH] Head Length (Decimal Inch):
- 1.5748
