MSR 4000R215ID Inch Bore Diameter, 90 Degree Face Mill
$1,548.19
(No reviews yet)
Write a Review
MSR 4000R215ID Inch Bore Diameter, 90 Degree Face Mill
MSR 4000R215ID Inch Bore Diameter, Standard Pitch, 6 Flute, 90 Degree Face Mill with a 4.0000" Cutting Diameter for Facing, Shouldering, Slotting, Heavy Milling Applications
- Tool Style:
- MSR
- Material:
- Steel
- Application:
- Facing|Heavy Milling|Shouldering|Slotting
- Hand:
- Right-Hand

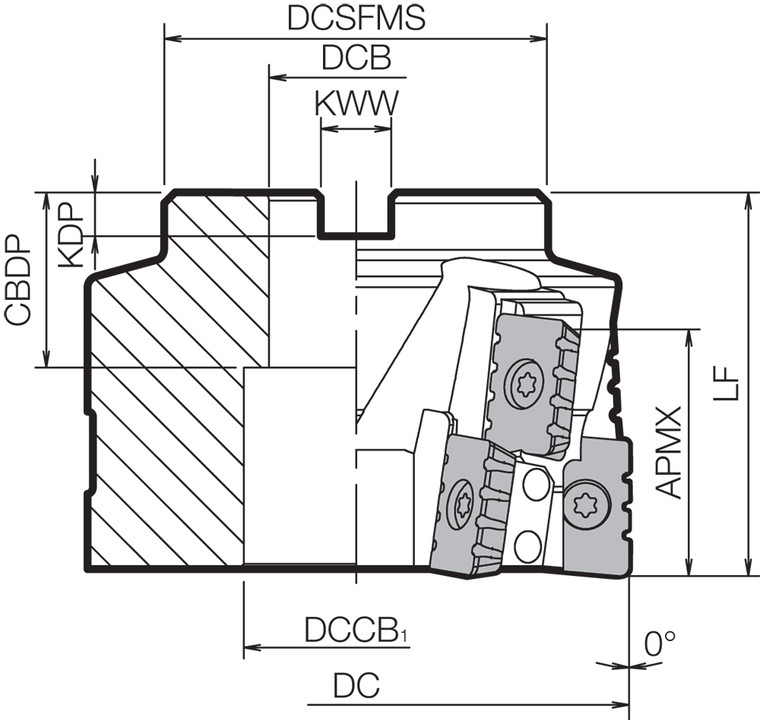

- [KAPR] Tool Entering Angle (Degree):
- 90
- [DCN] Cutting Diameter Minimum (mm):
- 101.60
- [DCX] Cutting Diameter Maximum (mm):
- 101.60
- [APMX] Maximum Depth of Cut (Decimal Inch):
- 1.7717
- [APMX] Maximum Depth of Cut (mm):
- 45.00
- Cutter Pitch:
- Standard Pitch
- Number of Inserts:
- 12
- Number of Flutes:
- 6
- Bore Diameter (Inch/Metric):
- Inch
- [DCB] Connection Bore Diameter (mm):
- 38.10
- [DCSFMS] Contact Surface Diameter Machine Side (mm):
- 69.85
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- inch
- Feature 1:
- 90 Degree Lead Angle Face Mill
- Feature 2:
- Application: Facing, Shouldering, Slotting, Heavy Milling
- Feature 3:
- Double the removal rate; double the productivity
- Feature 4:
- Notched inserts promote larger depths of cut and excellent chip control
- Feature 5:
- Heavy machining with low cutting forces
- ANSI Part Number:
- MSR4000R215ID
- ISO Part Number:
- MSR4000R-2-1.5ID
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- APMT2506…
- Old Material Number:
- 8824756
- Insert Screw:
- SB-60120TR
- Shim:
- MAP-2506
- Shim Screw:
- SB-40140TR
- Anti-Seize Compound:
- P-37
- Wrench (for Insert Screw):
- TT-25L
- Wrench (for Shim Screw):
- DT-15
- [LF] Functional Length (mm):
- 70.00
- Product Notes 1:
- Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
- [DC] Cutting Diameter (Decimal Inch):
- 4.0000
- [DC] Cutting Diameter (mm):
- 101.60
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 4.0000
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 4.0000
- [DCB] Connection Bore Diameter (Decimal Inch):
- 1.5000
- [DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
- 2.7500
- [LF] Functional Length (Decimal Inch):
- 2.7559
