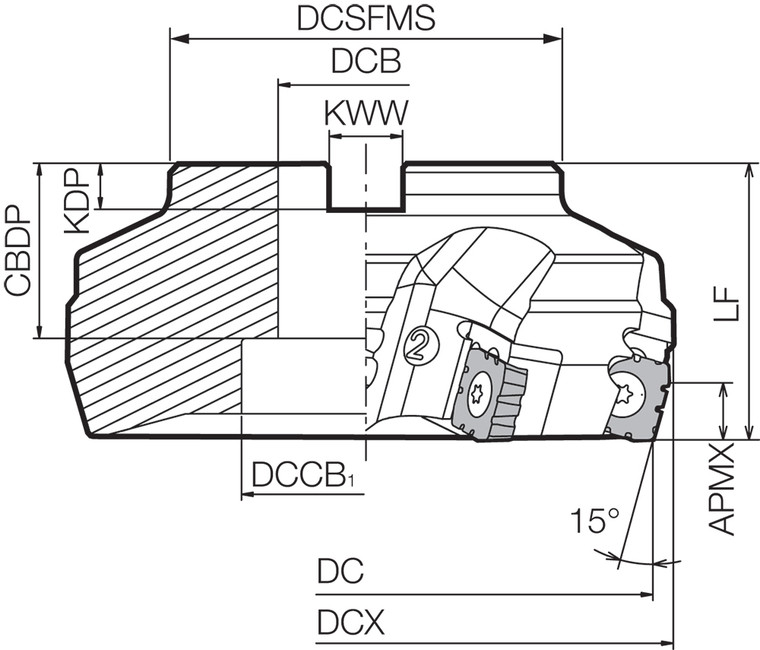

MSRS 15160R8T Inch Bore Diameter, 75 Degree Face Mill
$1,770.47
(No reviews yet)
Write a Review
MSRS 15160R8T Inch Bore Diameter, 75 Degree Face Mill
MSRS 15160R8T Inch Bore Diameter, Coarse Pitch, 8 Flute, 75 Degree Face Mill with a 160.00mm Cutting Diameter for Facing, Heavy Milling Applications
- Tool Style:
- MSRS
- Material:
- Steel
- Application:
- Facing|Heavy Milling
- Hand:
- Right-Hand
- [KAPR] Tool Entering Angle (Degree):
- 75
- [DCN] Cutting Diameter Minimum (mm):
- 160.00
- [DCX] Cutting Diameter Maximum (mm):
- 167.00
- [APMX] Maximum Depth of Cut (Decimal Inch):
- 0.4724
- [APMX] Maximum Depth of Cut (mm):
- 12.00
- Cutter Pitch:
- Coarse Pitch
- Number of Inserts:
- 8
- Number of Flutes:
- 8
- Bore Diameter (Inch/Metric):
- Inch
- [DCB] Connection Bore Diameter (mm):
- 50.80
- [DCSFMS] Contact Surface Diameter Machine Side (mm):
- 110.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- 75 Degree Lead Angle Face Mill
- Feature 2:
- Application: Facing, Heavy Milling
- Feature 3:
- Large depths of cut and high feed rates
- Feature 4:
- Notched inserts reduce cutting forces when entering the workpiece
- Feature 5:
- Stable machining without chattering
- ANSI Part Number:
- MSRS15160R8T
- ISO Part Number:
- MSRS15160R-8T
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- SPMT1806ED…
- Old Material Number:
- 8825956
- Insert Screw:
- SB-60120TR
- Cartridge:
- MAP-1806
- Cartridge Screw:
- SB-40140TR
- Anti-Seize Compound:
- P-37
- Wrench (for Insert Screw):
- TT-25L
- Wrench (for Cartridge Screw):
- DT-15
- Tightening Torque:
- 7.5 Nm (for Insert Screw), 3.5 Nm (for Cartridge Screw)
- [LF] Functional Length (mm):
- 60.00
- Product Notes 1:
- Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
- [DC] Cutting Diameter (Decimal Inch):
- 6.2992 - 6.5748
- [DC] Cutting Diameter (mm):
- 160.00 - 167.00
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 6.2992
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 6.5748
- [DCB] Connection Bore Diameter (Decimal Inch):
- 2.0000
- [DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
- 4.3307
- [LF] Functional Length (Decimal Inch):
- 2.3622
