MSRS 90080R24TM Metric Bore Diameter, 90 Degree Face Mill
$1,193.61
(No reviews yet)
Write a Review

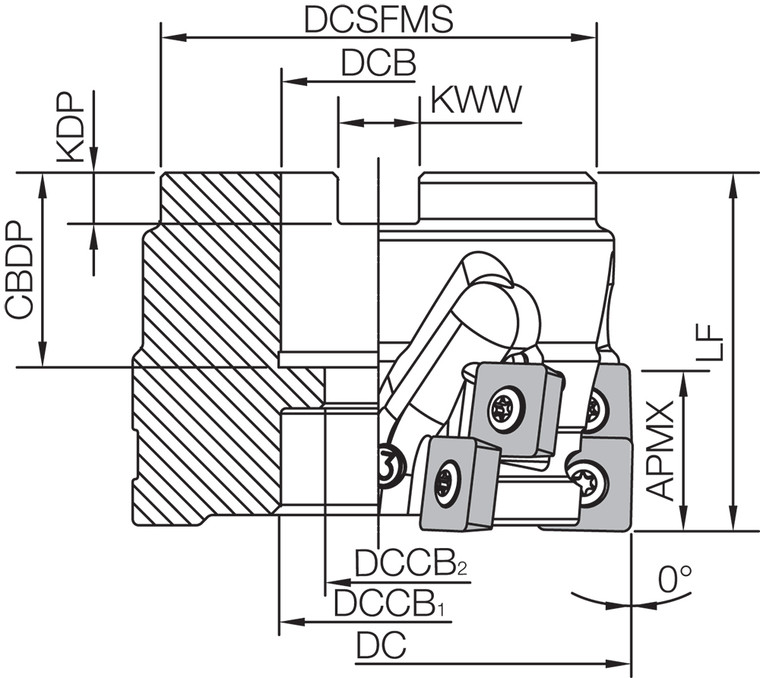

MSRS 90080R24TM Metric Bore Diameter, 90 Degree Face Mill
MSRS 90080R24TM Metric Bore Diameter, Standard Pitch, 4 Flute, 90 Degree Face Mill with a 80.00mm Cutting Diameter for Facing, Shouldering, Slotting, Heavy Milling Applications
- Tool Style:
- MSRS
- Material:
- Steel
- Application:
- Facing|Heavy Milling|Shouldering|Slotting
- Hand:
- Right-Hand
- [KAPR] Tool Entering Angle (Degree):
- 90
- [DCN] Cutting Diameter Minimum (mm):
- 80.00
- [DCX] Cutting Diameter Maximum (mm):
- 80.00
- [APMX] Maximum Depth of Cut (Decimal Inch):
- 1.2205
- [APMX] Maximum Depth of Cut (mm):
- 31.00
- Cutter Pitch:
- Standard Pitch
- Number of Inserts:
- 8
- Number of Flutes:
- 4
- Bore Diameter (Inch/Metric):
- Metric
- [DCB] Connection Bore Diameter (mm):
- 27.00
- [DCSFMS] Contact Surface Diameter Machine Side (mm):
- 70.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- 90 Degree Lead Angle Face Mill
- Feature 2:
- Application: Facing, Shouldering, Slotting, Heavy Milling
- Feature 3:
- Large depths of cut and high feed rates
- Feature 4:
- Notched inserts reduce cutting forces when entering the workpiece
- Feature 5:
- Stable machining without chattering
- ANSI Part Number:
- MSRS90080R24TM
- ISO Part Number:
- MSRS90080R-2-4T-M
- US Stock:
- 0
- Worldwide Stock:
- 3
- Compatible Inserts (Partial):
- SPMT1806EN…
- Old Material Number:
- 8833544
- Insert Screw:
- SB-60120TR
- Arbor Bolt:
- HH12X35
- Anti-Seize Compound:
- P-37
- Wrench (for Insert Screw):
- TT-25L
- Tightening Torque:
- 7.5 Nm (for Insert Screw)
- [LF] Functional Length (mm):
- 60.00
- Product Notes 1:
- Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
- [DC] Cutting Diameter (Decimal Inch):
- 3.1496
- [DC] Cutting Diameter (mm):
- 80.00
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 3.1496
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 3.1496
- [DCB] Connection Bore Diameter (Decimal Inch):
- 1.0630
- [DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
- 2.7559
- [LF] Functional Length (Decimal Inch):
- 2.3622
