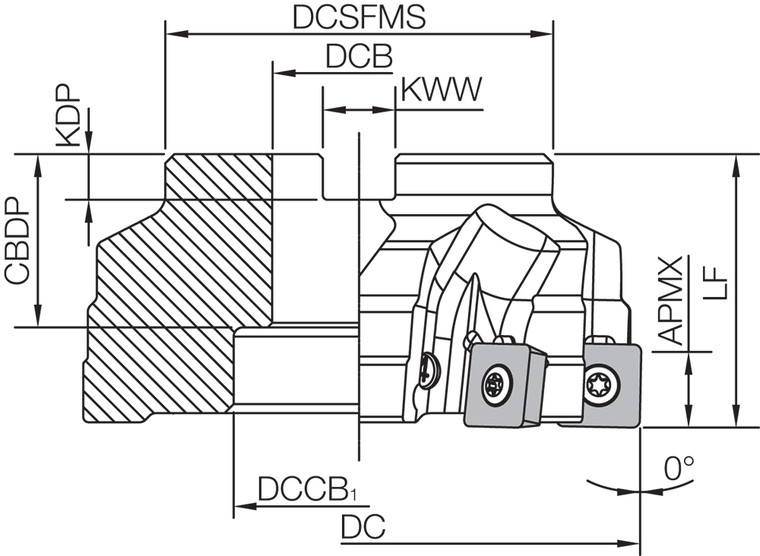

MSRS 90125R18TM Metric Bore Diameter, 90 Degree Face Mill

MSRS 90125R18TM Metric Bore Diameter, 90 Degree Face Mill

SKU:
THN01472
|
UPC:
4960664616312
$1,379.68
(No reviews yet)
Width:
6.02 (in)
Height:
6.38 (in)
Depth:
7.87 (in)
Current Stock:
Adding to cart… The item has been added
Description
MSRS 90125R18TM Metric Bore Diameter, Standard Pitch, 8 Flute, 90 Degree Face Mill with a 125.00mm Cutting Diameter for Facing, Shouldering, Slotting, Heavy Milling Applications
Additional Information
Tool Style:
MSRS
Material:
Steel
Application:
Facing|Heavy Milling|Shouldering|Slotting
Hand:
Right-Hand
[KAPR] Tool Entering Angle (Degree):
90
[DCN] Cutting Diameter Minimum (mm):
125.00
[DCX] Cutting Diameter Maximum (mm):
125.00
[APMX] Maximum Depth of Cut (Decimal Inch):
0.6496
[APMX] Maximum Depth of Cut (mm):
16.50
Cutter Pitch:
Standard Pitch
Number of Inserts:
8
Number of Flutes:
8
Bore Diameter (Inch/Metric):
Metric
[DCB] Connection Bore Diameter (mm):
40.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
90 Degree Lead Angle Face Mill
Feature 2:
Application: Facing, Shouldering, Slotting, Heavy Milling
Feature 3:
Large depths of cut and high feed rates
Feature 4:
Notched inserts reduce cutting forces when entering the workpiece
Feature 5:
Stable machining without chattering
ANSI Part Number:
MSRS90125R18TM
ISO Part Number:
MSRS90125R-1-8T-M
US Stock:
0
Worldwide Stock:
5
Compatible Inserts (Partial):
SPMT1806EN…
Old Material Number:
8833553
Insert Screw:
SB-60120TR
Anti-Seize Compound:
P-37
Wrench (for Insert Screw):
TT-25L
Tightening Torque:
7.5 Nm (for Insert Screw)
[LF] Functional Length (mm):
60.00
Product Notes 1:
Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
[DC] Cutting Diameter (Decimal Inch):
4.9213
[DC] Cutting Diameter (mm):
125.00
[DCN] Cutting Diameter Minimum (Decimal Inch):
4.9213
[DCX] Cutting Diameter Maximum (Decimal Inch):
4.9213
[DCB] Connection Bore Diameter (Decimal Inch):
1.5748
[LF] Functional Length (Decimal Inch):
2.3622
