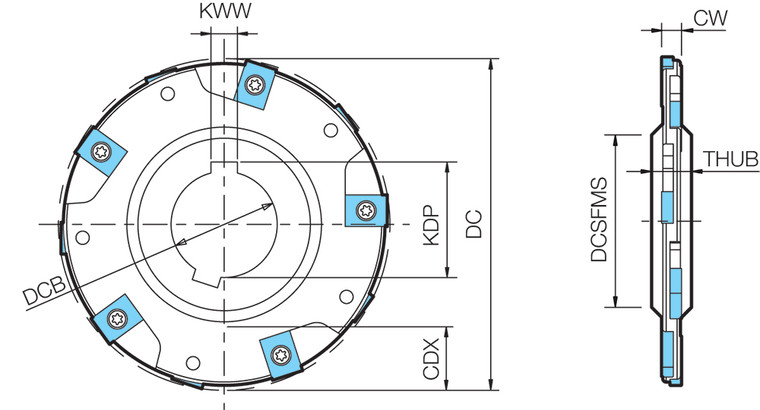

MSTB 4000AN5003T, Slot Mill

SKU:
THC10790
|
UPC:
4960664522958
$1,336.79
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
MSTB 4000AN5003T, Neutral, Slot Mill with a 1.0600" Max Dept of Cut for Slotting, Cut-Off Applications
Tool Style:
MSTB
Material:
Steel
Application:
Cut-Off|Slotting
Hand:
Neutral
[CDX] Max Depth of Cut (mm):
26.92
[CWN] Cutting Width Minimum (mm):
12.70
[CWX] Cutting Width Maximum (mm):
13.69
[DCN] Cutting Diameter Minimum (mm):
101.60
[DCX] Cutting Diameter Maximum (mm):
101.60
[DCB] Connection Bore Diameter (mm):
31.75
[DCSFMS] Contact Surface Diameter Machine Side (mm):
47.75
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
Up-right Type / Semi-adjustable Slot Width
Feature 2:
Easy and Secure Screw Holding - Inserts can be attached to the MSTB Slot Mills very easily by using clamp screws.
Feature 3:
Inserts have four edge and are, therefore, cost-effective
Feature 4:
Applicable to a variety of slotting by choosing different inserts
ANSI Part Number:
MSTB4000AN5003T
ISO Part Number:
MSTB4000AN500-3T
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
LN12…
Old Material Number:
8831225
Insert Screw:
SE-40090TR
Anti-Seize Compound:
P-37
Wrench (for Insert Screw):
TT-15L
Tightening Torque:
3 Nm (for Insert Screw)
Product Notes 1:
Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation.
[CW] Cutting Width (Decimal Inch):
0.5000 - 0.5390
[CW] Cutting Width (mm):
12.70 - 13.69
[CDX] Max Depth of Cut (Decimal Inch):
1.0598
[CWN] Cutting Width Minimum (Decimal Inch):
0.5000
[CWX] Cutting Width Maximum (Decimal Inch):
0.5390
[DC] Cutting Diameter (Decimal Inch):
4.0000
[DC] Cutting Diameter (mm):
101.60
[DCN] Cutting Diameter Minimum (Decimal Inch):
4.0000
[DCX] Cutting Diameter Maximum (Decimal Inch):
4.0000
[DCB] Connection Bore Diameter (Decimal Inch):
1.2500
[DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
1.8799
