MTGNR 164D, Indexable Turning Toolholder
$88.99
(No reviews yet)
Write a Review
MTGNR 164D, Indexable Turning Toolholder
MTGNR 164D, Right-Hand, Negative Rake, 90 Degree Lead Angle, Indexable Turning Toolholder for External Turning Applications
- Tool Style:
- MTGN
- Material:
- Steel
- Application:
- External Turning
- Hand:
- Right-Hand
- Rake:
- Negative
- [KAPR] Tool Entering Angle (Degree):
- 90
- Insert Shape:
- 60 Degree Triangle
- [H] Shank Height (mm):
- 25.40
- [B] Shank Width (mm):
- 25.40
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Multi-Lock Clamp and Lock Pin
- Unit (inch/mm):
- inch
- Feature 1:
- Right-Hand Toolholder
- Feature 2:
- Application: External Turning
- Feature 3:
- Multi-Lock Clamp and Lock Pin Insert Holding Design
- Feature 4:
- Compatible with Right-Hand TNMG33…, TNMX33…, TNGG33…, TNGA33…, TNMM33… Style Inserts
- Feature 5:
- Combination of Top Clamp and Pin Lock for Rigid Clamping and Heavy Machining
- ANSI Part Number:
- MTGNR164D
- ISO Part Number:
- MTGNR164D
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- TNMG33…, TNMX33…, TNGG33…, TNGA33…, TNMM33…
- Old Material Number:
- 8604205
- Clamp:
- CL-9
- Clamp Screw:
- XNS48
- Wrench (for Clamp Screw):
- LW-156

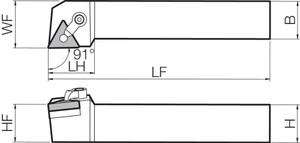

- [LF] Functional Length (mm):
- 152.40
- [LH] Head Length (mm):
- 30.23
- Product Notes 1:
- *Use ITSN323 shim (sold separately) if using TN..33 type inserts with different thickness.
- [H] Shank Height (Decimal Inch):
- 1.0000
- [B] Shank Width (Decimal Inch):
- 1.0000
- [LF] Functional Length (Decimal Inch):
- 6.0000
- [LH] Head Length (Decimal Inch):
- 1.1902
