MTP 9010075W Standard Length Shank, 90 Degree End Mill
$193.15
(No reviews yet)
Write a Review
MTP 9010075W Standard Length Shank, 90 Degree End Mill
MTP 9010075W Standard Length, Weldon Shank, 3 Flute, 90 Degree End Mill with a 1.0000" Cutting Diameter for Shouldering, Facing, Slotting Applications
- Tool Style:
- MTP
- Material:
- Steel
- Application:
- Facing|Shouldering|Slotting
- Hand:
- Right-Hand
- [KAPR] Tool Entering Angle (Degree):
- 90
- [DCN] Cutting Diameter Minimum (mm):
- 25.40
- [DCX] Cutting Diameter Maximum (mm):
- 25.40
- [APMX] Maximum Depth of Cut (Decimal Inch):
- 0.3400
- [APMX] Maximum Depth of Cut (mm):
- 8.64
- Number of Inserts:
- 3
- Number of Flutes:
- 3
- Shank Type:
- Standard Length
- Weldon Flat:
- Yes
- [DCON] Connection Diameter (mm):
- 19.05
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Clamp Set
- Unit (inch/mm):
- inch
- Feature 1:
- Right-Hand, Standard Length, 90 Lead Angle End Mill
- Feature 2:
- Shouldering, Facing, Slotting Applications
- Feature 3:
- Compatible with TPG22…, TPM 22... Inserts
- ANSI Part Number:
- MTP9010075W
- ISO Part Number:
- MTP9010075W
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- TPG22…, TPM22…
- Old Material Number:
- 8603980
- Clamp Set:
- CPS-2S
- Wrench (for Clamp Screw):
- FT-15

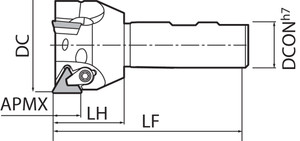

- [LF] Functional Length (mm):
- 83.31
- [LH] Head Length (mm):
- 31.75
- [DC] Cutting Diameter (Decimal Inch):
- 1.0000
- [DC] Cutting Diameter (mm):
- 25.40
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 1.0000
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 1.0000
- [DCON] Connection Diameter (Decimal Inch):
- 0.7500
- [LF] Functional Length (Decimal Inch):
- 3.2799
- [LH] Head Length (Decimal Inch):
- 1.2500
