MTP 90200R8 Standard Length Shank, 90 Degree End Mill

MTP 90200R8 Standard Length Shank, 90 Degree End Mill

SKU:
THN89166
$386.22
(No reviews yet)
Width:
2.25 (in)
Height:
2.25 (in)
Depth:
8.50 (in)
Current Stock:
Adding to cart… The item has been added
Description
MTP 90200R8 Standard Length, Weldon Shank, 3 Flute, 90 Degree End Mill with a 2.0000" Cutting Diameter for Shouldering, Facing, Slotting Applications
Additional Information
Tool Style:
MTP
Material:
Steel
Application:
Facing|Shouldering|Slotting
Hand:
Right-Hand

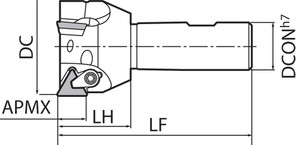

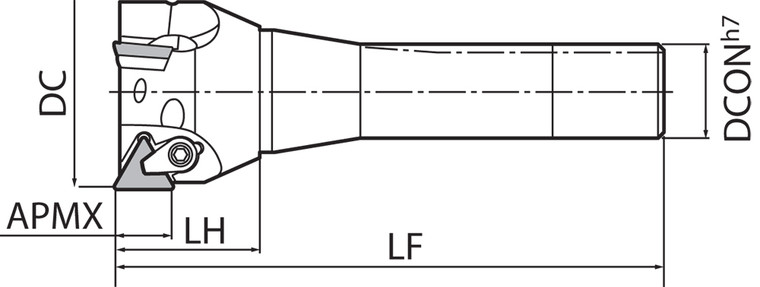

[KAPR] Tool Entering Angle (Degree):
90
[DCN] Cutting Diameter Minimum (mm):
50.80
[DCX] Cutting Diameter Maximum (mm):
50.80
[APMX] Maximum Depth of Cut (Decimal Inch):
0.5300
[APMX] Maximum Depth of Cut (mm):
13.46
Number of Inserts:
3
Number of Flutes:
3
Shank Type:
Standard Length
Weldon Flat:
Yes
[DCON] Connection Diameter (mm):
24.10
Coolant Through (Yes/No):
No
Insert Holding Method:
Clamp Set
Unit (inch/mm):
inch
Feature 1:
Right-Hand, Standard Length, 90 Lead Angle End Mill
Feature 2:
Shouldering, Facing, Slotting Applications
Feature 3:
Compatible with TPMR32PDER-H, TPKN32PDTR, TPKN32PDFR, TPG32…, TPM32… Inserts
ANSI Part Number:
MTP90200R8
ISO Part Number:
MTP90200R8
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
TPMR32PDER-H, TPKN32PDTR, TPKN32PDFR, TPG32…, TPM32…
Old Material Number:
8603985
Clamp Set:
CPS-3
Shim:
KPT-32
Shim Screw:
SH3X6
Wrench (for Clamp Screw):
LW-3
Wrench (for Shim Screw):
LW-2
[LF] Functional Length (mm):
152.40
[LH] Head Length (mm):
50.88
[DC] Cutting Diameter (Decimal Inch):
2.0000
[DC] Cutting Diameter (mm):
50.80
[DCN] Cutting Diameter Minimum (Decimal Inch):
2.0000
[DCX] Cutting Diameter Maximum (Decimal Inch):
2.0000
[DCON] Connection Diameter (Decimal Inch):
0.9488
[LF] Functional Length (Decimal Inch):
6.0000
[LH] Head Length (Decimal Inch):
2.0032
