MVLNL 2525M16, Indexable Turning Toolholder

MVLNL 2525M16, Indexable Turning Toolholder

SKU:
THC01260
|
UPC:
4960664005413
$204.31
(No reviews yet)
Width:
1.97 (in)
Height:
1.73 (in)
Depth:
7.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
MVLNL 2525M16, Left-Hand, Negative Rake, 95 Degree Lead Angle, Indexable Turning Toolholder for External Turning, Copying Applications
Additional Information
Tool Style:
MVLN
Material:
Steel
Application:
Copying|External Turning
Hand:
Left-Hand
Rake:
Negative

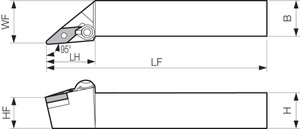

[KAPR] Tool Entering Angle (Degree):
95
Insert Shape:
35 Degree Diamond
[H] Shank Height (mm):
25.00
[B] Shank Width (mm):
25.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Multi-Lock Clamp and Lock Pin
Unit (inch/mm):
mm
Feature 1:
Left-Hand Toolholder
Feature 2:
Application: External Turning, Copying
Feature 3:
Multi-Lock Clamp and Lock Pin Insert Holding Design
Feature 4:
Compatible with Left-Hand VNMG33…, VNMA33…, VNMM33... Style Inserts
Feature 5:
Combination of Top Clamp and Pin Lock for Rigid Clamping and Heavy Machining
ANSI Part Number:
MVLNL2525M16
ISO Part Number:
MVLNL2525M-16
US Stock:
10
Worldwide Stock:
64
Compatible Inserts (Partial):
VNMG33…, VNMA33…, VNMM33…
Old Material Number:
8806919
Clamp Set:
CPS-5L
Shim:
MVN-32
Lock Pin:
TS-3S
Wrench (for Clamp Screw):
FH-2.5
Wrench (for Shim Screw):
FH-2
[LF] Functional Length (mm):
150.00
[LH] Head Length (mm):
38.00
[H] Shank Height (Decimal Inch):
0.9843
[B] Shank Width (Decimal Inch):
0.9843
[LF] Functional Length (Decimal Inch):
5.9055
[LH] Head Length (Decimal Inch):
1.4961
