MVLNR 2020K16, Indexable Turning Toolholder

MVLNR 2020K16, Indexable Turning Toolholder

SKU:
THC01230
|
UPC:
4960664005383
$178.87
(No reviews yet)
Width:
1.58 (in)
Height:
1.38 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
MVLNR 2020K16, Right-Hand, Negative Rake, 95 Degree Lead Angle, Indexable Turning Toolholder for External Turning, Copying Applications
Additional Information
Tool Style:
MVLN
Material:
Steel
Application:
Copying|External Turning
Hand:
Right-Hand
Rake:
Negative
[KAPR] Tool Entering Angle (Degree):
95
Insert Shape:
35 Degree Diamond
[H] Shank Height (mm):
20.00
[B] Shank Width (mm):
20.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Multi-Lock Clamp and Lock Pin
Unit (inch/mm):
mm
Feature 1:
Right-Hand Toolholder
Feature 2:
Application: External Turning, Copying
Feature 3:
Multi-Lock Clamp and Lock Pin Insert Holding Design
Feature 4:
Compatible with Right-Hand VNMG33…, VNMA33…, VNMM33... Style Inserts
Feature 5:
Combination of Top Clamp and Pin Lock for Rigid Clamping and Heavy Machining
ANSI Part Number:
MVLNR2020K16
ISO Part Number:
MVLNR2020K-16
US Stock:
5
Worldwide Stock:
112
Compatible Inserts (Partial):
VNMG33…, VNMA33…, VNMM33…
Old Material Number:
8806507
Clamp Set:
CPS-5R
Shim:
MVN-32
Lock Pin:
TS-3S
Wrench (for Clamp Screw):
FH-2.5
Wrench (for Shim Screw):
FH-2

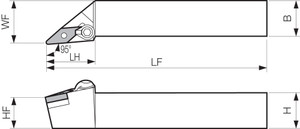

[LF] Functional Length (mm):
125.00
[LH] Head Length (mm):
38.00
[H] Shank Height (Decimal Inch):
0.7874
[B] Shank Width (Decimal Inch):
0.7874
[LF] Functional Length (Decimal Inch):
4.9213
[LH] Head Length (Decimal Inch):
1.4961
