MVVNN 163D, Indexable Turning Toolholder

MVVNN 163D, Indexable Turning Toolholder

SKU:
THC89192
$191.52
(No reviews yet)
Width:
2.00 (in)
Height:
2.00 (in)
Depth:
6.25 (in)
Current Stock:
Adding to cart… The item has been added
Description
MVVNN 163D, Neutral, Negative Rake, 72.5 Degree Lead Angle, Indexable Turning Toolholder for External Turning, Copying Applications
Additional Information
Tool Style:
MVVN
Material:
Steel
Application:
Copying|External Turning
Hand:
Neutral
Rake:
Negative
[KAPR] Tool Entering Angle (Degree):
72.5
Insert Shape:
35 Degree Diamond
[H] Shank Height (mm):
25.40
[B] Shank Width (mm):
25.40
Coolant Through (Yes/No):
No
Insert Holding Method:
Multi-Lock Clamp and Lock Pin
Unit (inch/mm):
inch
Feature 1:
Neutral Toolholder
Feature 2:
Application: External Turning, Copying
Feature 3:
Multi-Lock Clamp and Lock Pin Insert Holding Design
Feature 4:
Compatible with Neutral VNMG33…, VNMA33…, VNMM33... Style Inserts
Feature 5:
Combination of Top Clamp and Pin Lock for Rigid Clamping and Heavy Machining
ANSI Part Number:
MVVNN163D
ISO Part Number:
MVVNN163D
US Stock:
4
Worldwide Stock:
0
Compatible Inserts (Partial):
VNMG33…, VNMA33…, VNMM33…
Old Material Number:
8604185
Clamp:
CL-12
Clamp Screw:
XNS510
Shim:
IVSN322
Lock Pin:
NL34L
Wrench (for Clamp Screw):
5/64 Hex
Wrench (for Shim Screw):
LW-156

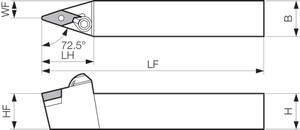

[LF] Functional Length (mm):
152.40
[LH] Head Length (mm):
42.42
[H] Shank Height (Decimal Inch):
1.0000
[B] Shank Width (Decimal Inch):
1.0000
[LF] Functional Length (Decimal Inch):
6.0000
[LH] Head Length (Decimal Inch):
1.6701
