PDJNL 164D, Indexable Turning Toolholder

PDJNL 164D, Indexable Turning Toolholder

SKU:
8801937
$157.85
(No reviews yet)
Width:
2.00 (in)
Height:
2.00 (in)
Depth:
6.00 (in)
Current Stock:
Adding to cart… The item has been added
Description
PDJNL 164D, Left-Hand, Negative Rake, 93 Degree Lead Angle, Indexable Turning Toolholder for External Turning, Copying Applications
Additional Information
Tool Style:
PDJN
Material:
Steel
Application:
Copying|External Turning
Hand:
Left-Hand
Rake:
Negative
[KAPR] Tool Entering Angle (Degree):
93
Insert Shape:
55 Degree Diamond
[H] Shank Height (mm):
25.40
[B] Shank Width (mm):
25.40
Coolant Through (Yes/No):
No
Insert Holding Method:
Lever Lock / Lock Pin
Unit (inch/mm):
inch
Feature 1:
Left-Hand Toolholder
Feature 2:
Application: External Turning, Copying
Feature 3:
Lever Lock (Pin Lock) Insert Holding Design
Feature 4:
Compatible with Left-Hand DNMG43…, DNMX43…, DNGG43…, DNGA43…, DNMM43… Style Inserts
Feature 5:
Easy Insert Replacement and General Use
ANSI Part Number:
PDJNL164D
ISO Part Number:
PDJNL16-4D
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
DNMG43…, DNMX43…, DNGG43…, DNGA43…, DNMM43…
Old Material Number:
8608682
Shim:
LD-42*
Shim Pin:
LSP-2
Punch:
PC-2
Lever:
LL-3N
Lock Screw:
LS-2N
Wrench (for Lock Screw):
LW-3

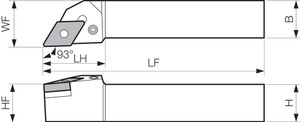

[LF] Functional Length (mm):
152.40
[LH] Head Length (mm):
26.92
Product Notes 1:
*Use shim LD-42-20 (sold separately) when using inserts with a corner-R (RE) greater than 1/16" to prevent workpiece and shim from interfering with each other.
[H] Shank Height (Decimal Inch):
1.0000
[B] Shank Width (Decimal Inch):
1.0000
[LF] Functional Length (Decimal Inch):
6.0000
[LH] Head Length (Decimal Inch):
1.0598
