PDJNL 3232P15U, Indexable Turning Toolholder

PDJNL 3232P15U, Indexable Turning Toolholder

SKU:
THC00840
$141.95
(No reviews yet)
Width:
1.97 (in)
Height:
1.97 (in)
Depth:
14.17 (in)
Current Stock:
Adding to cart… The item has been added
Description
PDJNL 3232P15U, Left-Hand, Negative Rake, 93 Degree Lead Angle, Indexable Turning Toolholder for External Turning, Copying Applications
Additional Information
Tool Style:
PDJN
Material:
Steel
Application:
Copying|External Turning
Hand:
Left-Hand
Rake:
Negative
[KAPR] Tool Entering Angle (Degree):
93
Insert Shape:
55 Degree Diamond
[H] Shank Height (mm):
32.00
[B] Shank Width (mm):
32.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Lever Lock / Lock Pin
Unit (inch/mm):
mm
Feature 1:
Left-Hand Toolholder
Feature 2:
Application: External Turning, Copying
Feature 3:
Lever Lock (Pin Lock) Insert Holding Design
Feature 4:
Compatible with Left-Hand DNMG44…, DNMX44…, DNGG44…, DNGA44…, DNMM44… Style Inserts
Feature 5:
Easy Insert Replacement and General Use
ANSI Part Number:
PDJNL3232P15U
ISO Part Number:
PDJNL3232P-15U
Compatible Inserts (Partial):
DNMG44…, DNMX44…, DNGG44…, DNGA44…, DNMM44…
Old Material Number:
8812905
Shim:
LD-42*
Shim Pin:
LSP-2
Punch:
PC-2
Lever:
LL-4
Lock Screw:
LS-3
Wrench (for Lock Screw):
LW-3
Product Notes 1:
*Use LD-43 shim (sold separately) if using DN..43 type inserts with different thickness.
Product Notes 2:
Use shim LD-42-20 (sold separately) when using inserts with a corner-R (RE) greater than 1/16" to prevent workpiece and shim from interfering with each other.
Product Notes 3:
If using DN..43 type inserts with a corner-R (RE) greater than 1/16", use LD-43-20 shim (sold separately).

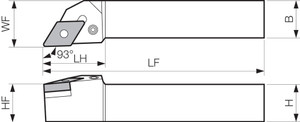

[LF] Functional Length (mm):
170.00
[LH] Head Length (mm):
36.00
[H] Shank Height (Decimal Inch):
1.2598
[B] Shank Width (Decimal Inch):
1.2598
[LF] Functional Length (Decimal Inch):
6.6929
[LH] Head Length (Decimal Inch):
1.4173
