PKM 16R015PM6D PR1625 Grade PVD Carbide, Indexable Cut-Off Insert

PKM 16R015PM6D PR1625 Grade PVD Carbide, Indexable Cut-Off Insert

SKU:
TLL40014
|
UPC:
4960664987672
$22.71
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
PKM 16R015PM6D PR1625 Grade PVD Carbide, 1.60mm Cutting Width, Right-Hand Cut-Off Insert for Light Interruption and Medium-Roughing in (P) Carbon/Alloy Steel and (M) Stainless Steel Material Applications
Additional Information
Tool Style:
PKM
Insert Size:
16
Chipbreaker:
PM
Insert Grade:
PR1625
Material:
Carbide
Coating Process:
PVD

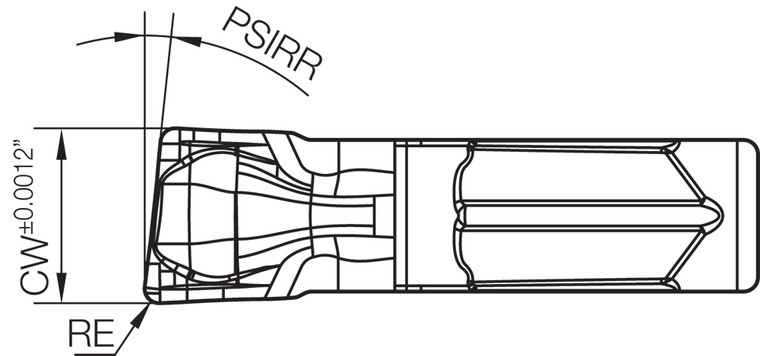

[RE] Corner Radius (mm):
0.15
Application:
Cut-Off
Hand:
Right-Hand
Rake:
Positive
[CWN] Cutting Width Minimum (mm):
1.60
[CWX] Cutting Width Maximum (mm):
1.60
Primary Workpiece Material:
(P) Carbon/Alloy Steel
Full Radius:
No
Number of Cutting Edges:
1
Usage Classification:
Light Interruption
Cutting Range:
Medium-Roughing
Insert Holding Method:
Self-Clamp
Unit (inch/mm):
inch
Feature 1:
Insert for Cut-Off
Feature 2:
6 Degree Lead Angle
Feature 3:
1 Cutting Edge
Feature 4:
Nano thin multi-layer coating MEGACOAT NANO for superior wear resistance and high oxidation resistance
Feature 5:
Application: PVD for (P) Carbon/Alloy Steel and (M) Stainless Steel
ANSI Part Number:
PKM16R015PM6DPR1625
ISO Part Number:
PKM16R-015PM-6D
US Stock:
10
Worldwide Stock:
10
Old Material Number:
8867788
Compatible Toolholder (Partial):
KPKB19-1, KPKB26-1, KPKB26-1JCT, KPKB32-1, KPKB32-1JCT
[RE] Corner Radius:
0.006"
[CW] Cutting Width (Decimal Inch):
0.0630
[CW] Cutting Width (mm):
1.60
[CWN] Cutting Width Minimum (Decimal Inch):
0.0630
[CWX] Cutting Width Maximum (Decimal Inch):
0.0630
