PKM 30N025PM GW15 Grade Uncoated Carbide, Indexable Cut-Off Insert

PKM 30N025PM GW15 Grade Uncoated Carbide, Indexable Cut-Off Insert

SKU:
TWG40002
|
UPC:
4960664932504
$22.71
(No reviews yet)
Width:
1.77 (in)
Height:
4.13 (in)
Depth:
0.39 (in)
Current Stock:
Adding to cart… The item has been added
Description
PKM 30N025PM GW15 Grade Uncoated Carbide, 0.1180" Cutting Width, Neutral Cut-Off Insert for Light Interruption and Finishing-Medium in (N) Non-Ferrous Metals and (S) Heat-Resistant Alloy
Additional Information
Tool Style:
PKM
Insert Size:
30
Chipbreaker:
PM
Insert Grade:
GW15
Material:
Carbide
Coating Process:
Uncoated

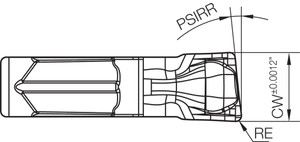

[RE] Corner Radius (mm):
0.25
Application:
Cut-Off
Hand:
Neutral
Rake:
Positive
[CWN] Cutting Width Minimum (mm):
3.00
[CWX] Cutting Width Maximum (mm):
3.00
Primary Workpiece Material:
(K) Cast Iron|(N) Non-Ferrous Materials
Full Radius:
No
Number of Cutting Edges:
1
Usage Classification:
Light Interruption
Cutting Range:
Finishing-Medium
Insert Holding Method:
Self-Clamp
Unit (inch/mm):
inch
Feature 1:
Insert for Cut-Off
Feature 2:
General Purpose
Feature 3:
1 Cutting Edge
Feature 4:
ISO identification symbol K carbide (equivalent to K10), tough micro-grain carbide
Feature 5:
Application: High wear resistance and toughness for non-ferrous materials, and non-metals, and titanium alloys
ANSI Part Number:
PKM30N025PMGW15
ISO Part Number:
PKM30N-025PM
US Stock:
10
Worldwide Stock:
310
Old Material Number:
8865568
Compatible Toolholder (Partial):
Please Refer to Catalog for Compatible Toolholders
[RE] Corner Radius:
0.010"
[CW] Cutting Width (Decimal Inch):
0.1181
[CW] Cutting Width (mm):
3.00
[CWN] Cutting Width Minimum (Decimal Inch):
0.1181
[CWX] Cutting Width Maximum (Decimal Inch):
0.1181
