PNEU 1205ANERW PR1535 Grade PVD Carbide, Indexable Milling Insert

PNEU 1205ANERW PR1535 Grade PVD Carbide, Indexable Milling Insert

SKU:
TLC05070
|
UPC:
4960664731367
$33.78
(No reviews yet)
Width:
2.44 (in)
Height:
0.55 (in)
Depth:
5.12 (in)
Current Stock:
Adding to cart… The item has been added
Description
PNEU 1205ANERW PR1535 Grade PVD Carbide, Pentagon, Negative Rake Angle, Right-Hand Milling Insert for Roughing in (M) Precipitation Hardened Stainless Steel and (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (P) Mold Steel, (M) Austenitic Stainless Steel, (M) Martensitic Stainless Steel, (S) Heat-Resistant Alloy
Additional Information
Tool Style:
PNEU
Insert Size:
1205
Chipbreaker:
ANER-W
Insert Grade:
PR1535
Material:
Carbide
Coating Process:
PVD

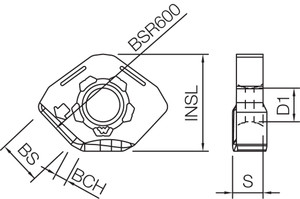

[S] Thickness (mm):
5.56
[INSL] Insert Length (mm):
17.85
Application:
Chamfering|Facing
Hand:
Right-Hand
Rake:
Negative
[EPSR] Insert Included Angle (Degree):
n/a
Primary Workpiece Material:
(M) Precipitation Hardened Stainless Steel
Insert Shape:
Pentagon
Number of Cutting Edges:
2
Cutting Range:
Roughing
Insert Holding Method:
Screw
Feature 1:
Insert for Facing, Chamfering
Feature 2:
Honed Edge / Wiper Edge / 2-Edge with 2 Cutting Edges
Feature 3:
Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
Feature 4:
Application: PVD for titanium alloy and precipitation hardened stainless steel
ANSI Part Number:
PNEU1205ANERWPR1535
ISO Part Number:
PNEU1205ANER-W
US Stock:
120
Worldwide Stock:
125
Old Material Number:
8842374
Compatible Toolholder (Partial):
MFPN45…R-…
[S] Thickness:
7/32"
[INSL] Insert Length (Decimal Inch):
0.7028
