PNMG 1106XNENGH PR1825 Grade PVD Carbide, Indexable Milling Insert

PNMG 1106XNENGH PR1825 Grade PVD Carbide, Indexable Milling Insert

SKU:
TLT00113
$24.38
(No reviews yet)
Width:
2.44 (in)
Height:
0.55 (in)
Depth:
5.12 (in)
Current Stock:
Adding to cart… The item has been added
Description
PNMG 1106XNENGH PR1825 Grade PVD Carbide, Pentagon, Negative Rake Angle, Neutral Milling Insert for Finishing in (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Austenitic Stainless Steel
Additional Information
Tool Style:
PNMG
Insert Size:
1106
Chipbreaker:
XNEN-GH
Insert Grade:
PR1825
Material:
Carbide
Coating Process:
PVD

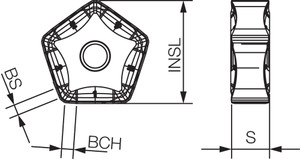

[S] Thickness:
1/4"
[S] Thickness (mm):
6.35
[INSL] Insert Length (Decimal Inch):
0.6784
[INSL] Insert Length (mm):
17.23
Application:
Chamfering|Facing
Hand:
Neutral
Rake:
Negative
Primary Workpiece Material:
(P) Carbon/Alloy Steel|(P) Mold Steel
Insert Shape:
Pentagon
Number of Cutting Edges:
10
Cutting Range:
Finishing
Insert Holding Method:
Screw
Feature 1:
MFK Milling Insert for Chamfering, Facing
Feature 2:
Honed Edge / Tough Edge (Heavy Milling) with 10 Cutting Edges
Feature 3:
Longer tool life with next-generation MEGACOAT NANO EX coating technology designed for milling
Feature 4:
Multi-layer structure with two unique nano layers for superior abrasion resistance and fracture resistance
Feature 5:
Excellent wear resistance oriented grade for steel milling applications
ANSI Part Number:
PNMG1106XNENGHPR1825
ISO Part Number:
PNMG1106XNEN-GH
Compatible Toolholder (Partial):
MFK…-11-…
