PNMU 0905XNERGH PR1525 Grade PVD Carbide, Indexable Milling Insert

PNMU 0905XNERGH PR1525 Grade PVD Carbide, Indexable Milling Insert

SKU:
TLB05004
|
UPC:
4960664841363
$23.30
(No reviews yet)
Width:
1.77 (in)
Height:
0.59 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
PNMU 0905XNERGH PR1525 Grade PVD Carbide, Indexable Milling Insert, Pentagon, Rake Angle, Milling Insert for Roughing in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (P) Mold Steel
Additional Information
Tool Style:
PNMU
Insert Size:
0905
Chipbreaker:
XNER-GH
Insert Grade:
PR1525
Material:
Carbide
Coating Process:
PVD

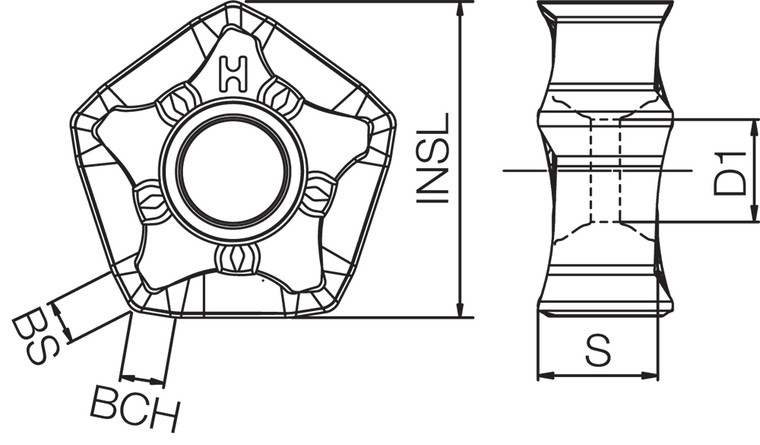

[S] Thickness (mm):
5.56
[INSL] Insert Length (mm):
14.60
Application:
Chamfering|Facing
Hand:
Right-Hand
Rake:
Negative
[EPSR] Insert Included Angle (Degree):
n/a
Primary Workpiece Material:
(P) Free-Cutting Steel|(P) Carbon/Alloy Steel|(P) Mold Steel
Insert Shape:
Pentagon
Number of Cutting Edges:
10
Cutting Range:
Roughing
Insert Holding Method:
Screw
Feature 1:
Insert for Facing, Chamfering
Feature 2:
Honed Edge / Tough Edge (Heavy Milling) with 10 Cutting Edges
Feature 3:
MEGACOAT NANO coating technology
Feature 4:
Nano thin multi-layer coating performs with wear resistance and high oxidation resistance
Feature 5:
Application: Stable and long tool life milling of steel and stainless steel
ANSI Part Number:
PNMU0905XNERGHPR1525
ISO Part Number:
PNMU0905XNER-GH
US Stock:
0
Worldwide Stock:
190
Old Material Number:
8858731
Compatible Toolholder (Partial):
MFPN66…R-…
[S] Thickness:
7/32"
[INSL] Insert Length (Decimal Inch):
0.5748
