PNMU 1205ANERSM PR1825 Grade PVD Carbide, Indexable Milling Insert

PNMU 1205ANERSM PR1825 Grade PVD Carbide, Indexable Milling Insert

SKU:
TLT00126
$29.66
(No reviews yet)
Width:
2.44 (in)
Height:
0.55 (in)
Depth:
5.12 (in)
Current Stock:
Adding to cart… The item has been added
Description
PNMU 1205ANERSM PR1825 Grade PVD Carbide, Pentagon, Negative Rake Angle, Right-Hand Milling Insert for Roughing in (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Austenitic Stainless Steel
Additional Information
Tool Style:
PNMU
Insert Size:
1205
Chipbreaker:
ANER-SM
Insert Grade:
PR1825
Material:
Carbide
Coating Process:
PVD
[S] Thickness:
7/32"
[S] Thickness (mm):
5.56

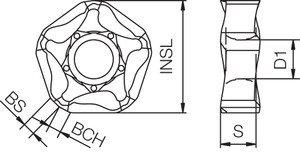

[INSL] Insert Length (Decimal Inch):
0.7039
[INSL] Insert Length (mm):
17.88
Application:
Chamfering|Facing
Hand:
Right-Hand
Rake:
Negative
Primary Workpiece Material:
(P) Carbon/Alloy Steel|(P) Mold Steel
Insert Shape:
Pentagon
Number of Cutting Edges:
10
Cutting Range:
Roughing
Insert Holding Method:
Screw
Feature 1:
MFPN Milling Insert for Chamfering, Facing
Feature 2:
Honed Edge / Low Cutting Force with 10 Cutting Edges
Feature 3:
Longer tool life with next-generation MEGACOAT NANO EX coating technology designed for milling
Feature 4:
Multi-layer structure with two unique nano layers for superior abrasion resistance and fracture resistance
Feature 5:
Excellent wear resistance oriented grade for steel milling applications
ANSI Part Number:
PNMU1205ANERSMPR1825
ISO Part Number:
PNMU1205ANER-SM
Compatible Toolholder (Partial):
MFPN45…R-…
