PRGCR 2020K12, Indexable Turning Toolholder

PRGCR 2020K12, Indexable Turning Toolholder

SKU:
THC00950
$200.41
(No reviews yet)
Width:
1.58 (in)
Height:
1.38 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
PRGCR 2020K12, Right-Hand, Positive Rake, Indexable Turning Toolholder for External Turning, Facing, Undercutting Applications
Additional Information
Tool Style:
PRGC
Material:
Steel
Application:
External Turning|Facing|Undercutting
Hand:
Right-Hand
Rake:
Positive
[KAPR] Tool Entering Angle (Degree):
n/a
Insert Shape:
Round
[H] Shank Height (mm):
20.00
[B] Shank Width (mm):
20.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Lever Lock / Lock Pin
Unit (inch/mm):
mm
Feature 1:
Right-Hand Toolholder
Feature 2:
Application: External Turning, Facing, Undercutting
Feature 3:
Lever Lock (Pin Lock) Insert Holding Design
Feature 4:
Compatible with Right-Hand RCMX1204… Style Inserts
Feature 5:
Easy Insert Replacement and General Use
ANSI Part Number:
PRGCR2020K12
ISO Part Number:
PRGCR2020K-12
Compatible Inserts (Partial):
RCMX1204…
Old Material Number:
8812922
Shim:
LR-12C
Shim Pin:
LSP-1
Punch:
PC-1
Lever:
LL-1CN
Lock Screw:
LS-1N
Wrench (for Lock Screw):
FH-2.5

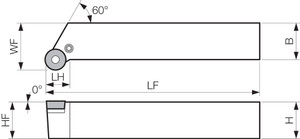

[LF] Functional Length (mm):
125.00
[LH] Head Length (mm):
14.00
[H] Shank Height (Decimal Inch):
0.7874
[B] Shank Width (Decimal Inch):
0.7874
[LF] Functional Length (Decimal Inch):
4.9213
[LH] Head Length (Decimal Inch):
0.5512
