PRXCL 2525M10, Indexable Turning Toolholder

PRXCL 2525M10, Indexable Turning Toolholder

SKU:
THC01004
$217.15
(No reviews yet)
Width:
1.97 (in)
Height:
1.73 (in)
Depth:
7.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
PRXCL 2525M10, Left-Hand, Positive Rake, Indexable Turning Toolholder for External Turning, Facing, Undercutting Applications
Additional Information
Tool Style:
PRXC
Material:
Steel
Application:
External Turning|Facing|Undercutting
Hand:
Left-Hand
Rake:
Positive
[KAPR] Tool Entering Angle (Degree):
n/a
Insert Shape:
Round
[H] Shank Height (mm):
25.00
[B] Shank Width (mm):
25.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Lever Lock / Lock Pin
Unit (inch/mm):
mm
Feature 1:
Left-Hand Toolholder
Feature 2:
Application: External Turning, Facing, Undercutting
Feature 3:
Lever Lock (Pin Lock) Insert Holding Design
Feature 4:
Compatible with Left-Hand RCGX1003…, RCMX1003… Style Inserts
Feature 5:
Easy Insert Replacement and General Use
ANSI Part Number:
PRXCL2525M10
ISO Part Number:
PRXCL2525M-10
Compatible Inserts (Partial):
RCGX1003…, RCMX1003…
Old Material Number:
8812935
Shim:
LR-10C
Shim Pin:
LSP-1
Punch:
PC-1
Lever:
LL-05C
Lock Screw:
LS-05
Wrench (for Lock Screw):
FH-2

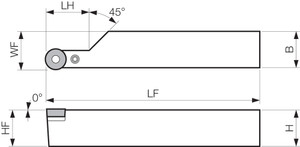

[LF] Functional Length (mm):
150.00
[LH] Head Length (mm):
30.00
[H] Shank Height (Decimal Inch):
0.9843
[B] Shank Width (Decimal Inch):
0.9843
[LF] Functional Length (Decimal Inch):
5.9055
[LH] Head Length (Decimal Inch):
1.1811
