PRXCR 1610MD, Indexable Turning Toolholder

PRXCR 1610MD, Indexable Turning Toolholder

SKU:
THC89404
|
UPC:
4960664469246
$133.40
(No reviews yet)
Width:
1.58 (in)
Height:
1.38 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
PRXCR 1610MD, Right-Hand, Positive Rake, Indexable Turning Toolholder for External Turning, Facing, Undercutting Applications
Additional Information
Tool Style:
PRXC
Material:
Steel
Application:
External Turning|Facing|Undercutting
Hand:
Right-Hand
Rake:
Positive
[KAPR] Tool Entering Angle (Degree):
n/a
Insert Shape:
Round
[H] Shank Height (mm):
25.40
[B] Shank Width (mm):
25.40
Coolant Through (Yes/No):
No
Insert Holding Method:
Lever Lock / Lock Pin
Unit (inch/mm):
inch
Feature 1:
Right-Hand Toolholder
Feature 2:
Application: External Turning, Facing, Undercutting
Feature 3:
Lever Lock (Pin Lock) Insert Holding Design
Feature 4:
Compatible with Right-Hand RCGX1003…, RCMX1003… Style Inserts
Feature 5:
Easy Insert Replacement and General Use
ANSI Part Number:
PRXCR1610MD
ISO Part Number:
PRXCR16-10MD
US Stock:
3
Worldwide Stock:
0
Compatible Inserts (Partial):
RCGX1003…, RCMX1003…
Old Material Number:
8820508
Shim:
LR-10C
Shim Pin:
LSP-1
Punch:
PC-1
Lever:
LL-05C
Lock Screw:
LS-05
Wrench (for Lock Screw):
FH-2

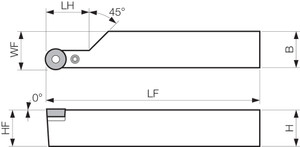

[LF] Functional Length (mm):
101.60
[LH] Head Length (mm):
25.40
[H] Shank Height (Decimal Inch):
1.0000
[B] Shank Width (Decimal Inch):
1.0000
[LF] Functional Length (Decimal Inch):
4.0000
[LH] Head Length (Decimal Inch):
1.0000
