PSBNL 2020K12, Indexable Turning Toolholder

PSBNL 2020K12, Indexable Turning Toolholder

SKU:
THC00190
$92.20
(No reviews yet)
Width:
1.58 (in)
Height:
1.38 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
PSBNL 2020K12, Left-Hand, Negative Rake, 75 Degree Lead Angle, Indexable Turning Toolholder for External Turning Applications
Additional Information
Tool Style:
PSBN
Material:
Steel
Application:
External Turning
Hand:
Left-Hand
Rake:
Negative
[KAPR] Tool Entering Angle (Degree):
75
Insert Shape:
90 Degree Square
[H] Shank Height (mm):
20.00
[B] Shank Width (mm):
20.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Lever Lock / Lock Pin
Unit (inch/mm):
mm
Feature 1:
Left-Hand Toolholder
Feature 2:
Application: External Turning
Feature 3:
Lever Lock (Pin Lock) Insert Holding Design
Feature 4:
Compatible with Left-Hand SNMG43…, SNGG43…, SNGA43… Style Inserts
Feature 5:
Easy Insert Replacement and General Use
ANSI Part Number:
PSBNL2020K12
ISO Part Number:
PSBNL2020K-12
Compatible Inserts (Partial):
SNMG43…, SNGG43…, SNGA43…
Old Material Number:
8806547
Shim:
LS-42
Shim Pin:
LSP-2
Punch:
PC-2
Lever:
LL-2N
Lock Screw:
LS-2N
Wrench (for Lock Screw):
LW-3

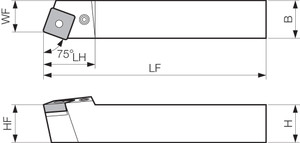

[LF] Functional Length (mm):
125.00
[LH] Head Length (mm):
27.00
[H] Shank Height (Decimal Inch):
0.7874
[B] Shank Width (Decimal Inch):
0.7874
[LF] Functional Length (Decimal Inch):
4.9213
[LH] Head Length (Decimal Inch):
1.0630
