PTFNR 1212F11, Indexable Turning Toolholder
$97.17
(No reviews yet)
Write a Review
PTFNR 1212F11, Indexable Turning Toolholder
PTFNR 1212F11, Right-Hand, Negative Rake, 90 Degree Lead Angle, Indexable Turning Toolholder for Facing Applications
- Tool Style:
- PTFN
- Material:
- Steel
- Application:
- Facing
- Hand:
- Right-Hand
- Rake:
- Negative
- [KAPR] Tool Entering Angle (Degree):
- 90
- Insert Shape:
- 60 Degree Triangle
- [H] Shank Height (mm):
- 12.00
- [B] Shank Width (mm):
- 12.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Lever Lock / Lock Pin
- Unit (inch/mm):
- mm
- Feature 1:
- Right-Hand Toolholder
- Feature 2:
- Application: Facing
- Feature 3:
- Lever Lock (Pin Lock) Insert Holding Design
- Feature 4:
- Compatible with Left-Hand TN..22… Style Inserts
- Feature 5:
- Easy Insert Replacement and General Use
- ANSI Part Number:
- PTFNR1212F11
- ISO Part Number:
- PTFNR1212F-11
- Compatible Inserts (Partial):
- TN..22…
- Old Material Number:
- 8813049
- Shim Pin:
- P-03
- Lever:
- LL-03N
- Lock Screw:
- LS-03N
- Wrench (for Lock Screw):
- FH-2
- Product Notes:
- Left-hand Insert for Right-hand Toolholder

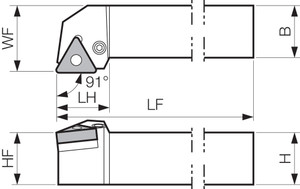

- [LF] Functional Length (mm):
- 80.00
- [LH] Head Length (mm):
- 15.00
- [H] Shank Height (Decimal Inch):
- 0.4724
- [B] Shank Width (Decimal Inch):
- 0.4724
- [LF] Functional Length (Decimal Inch):
- 3.1496
- [LH] Head Length (Decimal Inch):
- 0.5906
