PTFNR 1616H11, Indexable Turning Toolholder

PTFNR 1616H11, Indexable Turning Toolholder

SKU:
THC07830
|
UPC:
4960664191055
$97.17
(No reviews yet)
Width:
1.58 (in)
Height:
1.38 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
PTFNR 1616H11, Right-Hand, Negative Rake, 90 Degree Lead Angle, Indexable Turning Toolholder for Facing Applications
Additional Information
Tool Style:
PTFN
Material:
Steel
Application:
Facing
Hand:
Right-Hand
Rake:
Negative
[KAPR] Tool Entering Angle (Degree):
90
Insert Shape:
60 Degree Triangle
[H] Shank Height (mm):
16.00
[B] Shank Width (mm):
16.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Lever Lock / Lock Pin
Unit (inch/mm):
mm
Feature 1:
Right-Hand Toolholder
Feature 2:
Application: Facing
Feature 3:
Lever Lock (Pin Lock) Insert Holding Design
Feature 4:
Compatible with Left-Hand TNMG23…, TNGG23… Style Inserts
Feature 5:
Easy Insert Replacement and General Use
ANSI Part Number:
PTFNR1616H11
ISO Part Number:
PTFNR1616H-11
US Stock:
0
Worldwide Stock:
1
Compatible Inserts (Partial):
TNMG23…, TNGG23…
Old Material Number:
8813050
Shim Pin:
P-03S
Lever:
LL-03TN
Lock Screw:
LS-03SN
Wrench (for Lock Screw):
FH-2.5

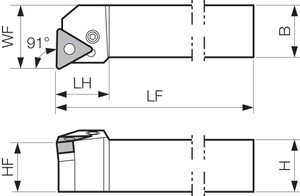

[LF] Functional Length (mm):
100.00
[LH] Head Length (mm):
22.50
Product Notes:
Left-hand Insert for Right-hand Toolholder
[H] Shank Height (Decimal Inch):
0.6299
[B] Shank Width (Decimal Inch):
0.6299
[LF] Functional Length (Decimal Inch):
3.9370
[LH] Head Length (Decimal Inch):
0.8858
