PTGNR 1212F11, Indexable Turning Toolholder

PTGNR 1212F11, Indexable Turning Toolholder

SKU:
THC00370
$97.17
(No reviews yet)
Width:
1.58 (in)
Height:
1.38 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
PTGNR 1212F11, Right-Hand, Negative Rake, 90 Degree Lead Angle, Indexable Turning Toolholder for External Turning Applications
Additional Information
Tool Style:
PTGN
Material:
Steel
Application:
External Turning
Hand:
Right-Hand
Rake:
Negative
[KAPR] Tool Entering Angle (Degree):
90
Insert Shape:
60 Degree Triangle
[H] Shank Height (mm):
12.00
[B] Shank Width (mm):
12.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Lever Lock / Lock Pin
Unit (inch/mm):
mm
Feature 1:
Right-Hand Toolholder
Feature 2:
Application: External Turning
Feature 3:
Lever Lock (Pin Lock) Insert Holding Design
Feature 4:
Compatible with Right-Hand TNMG23…, TNGG23… Style Inserts
Feature 5:
Easy Insert Replacement and General Use
ANSI Part Number:
PTGNR1212F11
ISO Part Number:
PTGNR1212F-11
Compatible Inserts (Partial):
TNMG23…, TNGG23…
Old Material Number:
8806559
Shim Pin:
P-03
Lever:
LL-03N
Lock Screw:
LS-03N
Wrench (for Lock Screw):
FH-2

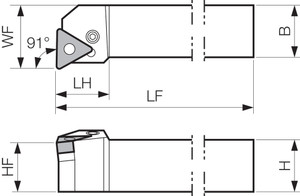

[LF] Functional Length (mm):
80.00
[LH] Head Length (mm):
22.00
[H] Shank Height (Decimal Inch):
0.4724
[B] Shank Width (Decimal Inch):
0.4724
[LF] Functional Length (Decimal Inch):
3.1496
[LH] Head Length (Decimal Inch):
0.8661
