PTGNR 2525M16, Indexable Turning Toolholder

PTGNR 2525M16, Indexable Turning Toolholder

SKU:
THC00410
|
UPC:
4960664004546
$103.61
(No reviews yet)
Width:
1.97 (in)
Height:
1.73 (in)
Depth:
7.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
PTGNR 2525M16, Right-Hand, Negative Rake, 90 Degree Lead Angle, Indexable Turning Toolholder for External Turning Applications
Additional Information
Tool Style:
PTGN
Material:
Steel
Application:
External Turning
Hand:
Right-Hand
Rake:
Negative
[KAPR] Tool Entering Angle (Degree):
90
Insert Shape:
60 Degree Triangle
[H] Shank Height (mm):
25.00
[B] Shank Width (mm):
25.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Lever Lock / Lock Pin
Unit (inch/mm):
mm
Feature 1:
Right-Hand Toolholder
Feature 2:
Application: External Turning
Feature 3:
Lever Lock (Pin Lock) Insert Holding Design
Feature 4:
Compatible with Right-Hand TNMG33…, TNMX33…, TNGG33…, TNGA33…, TNMM33… Style Inserts
Feature 5:
Easy Insert Replacement and General Use
ANSI Part Number:
PTGNR2525M16
ISO Part Number:
PTGNR2525M-16
US Stock:
9
Worldwide Stock:
15
Compatible Inserts (Partial):
TNMG33…, TNMX33…, TNGG33…, TNGA33…, TNMM33…
Old Material Number:
8802010
Shim:
LT-32N*
Shim Pin:
LSP-1
Punch:
PC-1
Lever:
LL-1N
Lock Screw:
LS-1N
Wrench (for Lock Screw):
FH-2.5

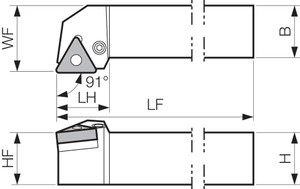

[LF] Functional Length (mm):
150.00
[LH] Head Length (mm):
24.00
Product Notes 1:
*Use shim LT-32N-20 (sold separately) when using inserts with a corner-R (RE) greater than 1/16" to prevent workpiece and shim from interfering with each other.
[H] Shank Height (Decimal Inch):
0.9843
[B] Shank Width (Decimal Inch):
0.9843
[LF] Functional Length (Decimal Inch):
5.9055
[LH] Head Length (Decimal Inch):
0.9449
