PWLNR 2525M06, Indexable Turning Toolholder

PWLNR 2525M06, Indexable Turning Toolholder

SKU:
THC07804
|
UPC:
4960664147762
$103.61
(No reviews yet)
Width:
1.97 (in)
Height:
1.73 (in)
Depth:
7.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
PWLNR 2525M06, Right-Hand, Negative Rake, 95 Degree Lead Angle, Indexable Turning Toolholder for External Turning, Facing Applications
Additional Information
Tool Style:
PWLN
Material:
Steel
Application:
External Turning|Facing
Hand:
Right-Hand
Rake:
Negative

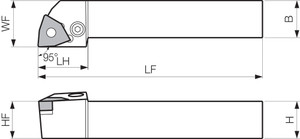

[KAPR] Tool Entering Angle (Degree):
95
Insert Shape:
80 Degree Trigon
[H] Shank Height (mm):
25.00
[B] Shank Width (mm):
25.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Lever Lock / Lock Pin
Unit (inch/mm):
mm
Feature 1:
Right-Hand Toolholder
Feature 2:
Application: External Turning, Facing
Feature 3:
Lever Lock (Pin Lock) Insert Holding Design
Feature 4:
Compatible with Right-Hand WNMG33…, WNGG33… Style Inserts
Feature 5:
Easy Insert Replacement and General Use
ANSI Part Number:
PWLNR2525M06
ISO Part Number:
PWLNR2525M-06
US Stock:
0
Worldwide Stock:
7
Compatible Inserts (Partial):
WNMG33…, WNGG33…
Old Material Number:
8806574
Shim:
LW-32N
Shim Pin:
LSP-1
Punch:
PC-1
Lever:
LL-1N
Lock Screw:
LS-1N
Wrench (for Lock Screw):
FH-2.5
[LF] Functional Length (mm):
150.00
[LH] Head Length (mm):
22.00
[H] Shank Height (Decimal Inch):
0.9843
[B] Shank Width (Decimal Inch):
0.9843
[LF] Functional Length (Decimal Inch):
5.9055
[LH] Head Length (Decimal Inch):
0.8661
