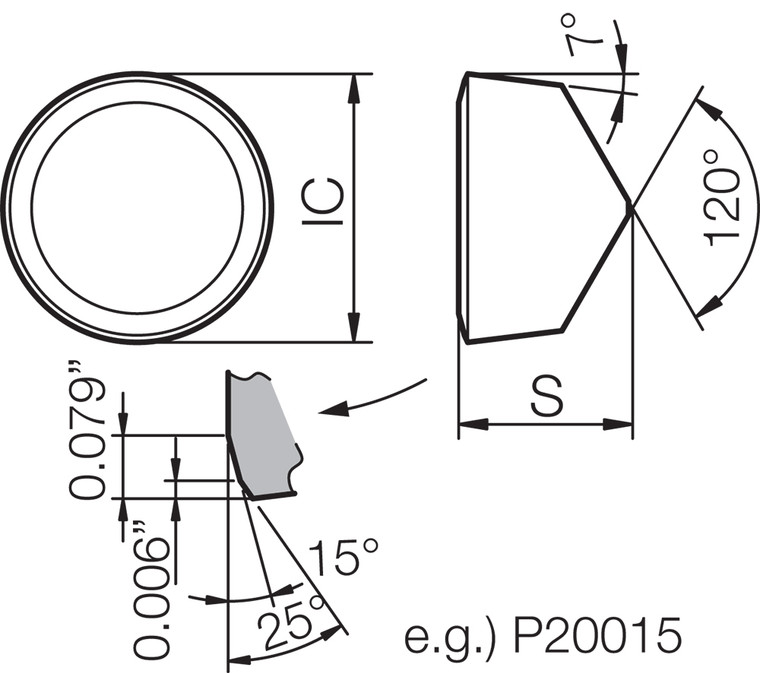

RCGX 102T04015 A66N Grade Ceramic, Indexable Turning Insert
$35.00
(No reviews yet)
Write a Review
RCGX 102T04015 A66N Grade Ceramic, Indexable Turning Insert
RCGX 102T04015 A66N Grade Ceramic, 7 Degree, Round, Positive Rake Angle, Turning Insert for Continuous and Finishing-Medium in (H) Hardened Materials
- Tool Style:
- RCGX
- Insert Size:
- 102
- Insert Grade:
- A66N
- Material:
- Ceramic
- Coating Process:
- PVD
- [IC] Inscribed Circle (mm):
- 6.35
- [S] Thickness (mm):
- 4.57
- Application:
- External Turning|Facing|Roll Machining|Undercutting
- Hand:
- Neutral
- Rake:
- Positive
- [EPSR] Insert Included Angle (Degree):
- n/a
- Primary Workpiece Material:
- (H) Hardened Materials
- Insert Shape:
- Round
- Number of Cutting Edges:
- n/a
- Usage Classification:
- Continuous
- Cutting Range:
- Finishing-Medium
- Insert Holding Method:
- Clamp
- Feature 1:
- Insert for External Turning, Facing, Undercutting, Roll Machining
- Feature 2:
- TiN PVD coated aluminum oxide and titanium carbide ceramic (TiN coated Al2O3+TiC) insert grade
- Feature 3:
- Application: semi-roughing to finishing of hard materials
- ANSI Part Number:
- RCGX102T04015A66N
- ISO Part Number:
- RCGX102T04015
- US Stock:
- 5010
- Worldwide Stock:
- 0
- Old Material Number:
- 8802029
- Compatible Toolholder (Partial):
- CRDCN16-2
- [IC] Inscribed Circle:
- 1/4"
- [S] Thickness:
- 0.180"
