S06MSCLPR25 Right-Hand, Positive Rake, Boring Bar

S06MSCLPR25 Right-Hand, Positive Rake, Boring Bar

SKU:
THC89271
$109.83
(No reviews yet)
Width:
1.50 (in)
Height:
1.50 (in)
Depth:
6.25 (in)
Current Stock:
Adding to cart… The item has been added
Description
S06MSCLPR25 Right-Hand, Positive Rake, General Purpose Boring Bar with 95 Degree Lead Angle and 0.4720" Minimum Bore Dia.
Additional Information
Tool Style:
S...SCLP
Material:
Steel
Bar Type:
Steel Shank
Application:
Boring|Internal Facing
Hand:
Right-Hand
Rake:
Positive
[KAPR] Tool Entering Angle (Degree):
95
Insert Shape:
80 Degree Diamond
[DMIN] Minimum Bore Diameter (mm):
12.00
[DCON] Connection Diameter (mm):
9.53
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
~0 (Axial), -5 (Radial) Rake Angle General Purpose Boring Bar
Feature 2:
Great for Boring, Internal Facing Applications
Feature 3:
Compatible with Left-Hand CPMT2515…, CPMH2515…, CPMB2515…, CPGB2515… Inserts
ANSI Part Number:
S06MSCLPR25
ISO Part Number:
S06MSCLPR25
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
CPMT2515…, CPMH2515…, CPMB2515…, CPGB2515…
Old Material Number:
8604077
Insert Screw:
SB-3STR
Wrench (for Insert Screw):
FT-10

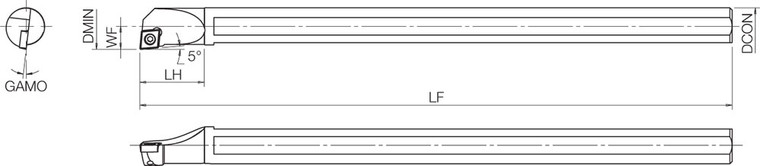

[LF] Functional Length (mm):
152.40
[LH] Head Length (mm):
25.40
Product Notes:
Left-hand Insert for Right-hand Toolholder
[DMIN] Minimum Bore Diameter (Decimal Inch):
0.4724
[DCON] Connection Diameter (Decimal Inch):
0.3752
[LF] Functional Length (Decimal Inch):
6.0000
[LH] Head Length (Decimal Inch):
1.0000
