S100DRV1000607, DRV Magic Drill 1.0000" Cutting Diameter, 6xD, Coolant-Through Indexable Insert Drill

S100DRV1000607, DRV Magic Drill 1.0000" Cutting Diameter, 6xD, Coolant-Through Indexable Insert Drill

SKU:
THD11760
|
UPC:
4960664859733
$780.92
(No reviews yet)
Width:
1.97 (in)
Height:
1.97 (in)
Depth:
9.65 (in)
Current Stock:
Adding to cart… The item has been added
Description
S100DRV1000607, DRV Magic Drill 1.0000" Cutting Diameter, 1.0000" Shank Diameter, 6xD, Coolant-Through Indexable Insert Drill
Additional Information
Tool Style:
DRV
Material:
Steel
Application:
Drilling
Hand:
Right-Hand

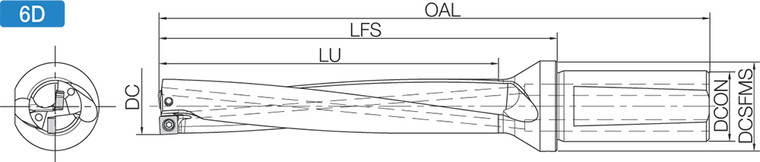

[DCN] Cutting Diameter Minimum (mm):
25.40
[DCX] Cutting Diameter Maximum (mm):
25.40
Drill Depth by Diameter Ratio:
6xD
[LU] Usable Length (mm):
152.40
Number of Inserts:
2
Number of Flutes:
2
Shank Type:
Standard Length
Weldon Flat:
Yes
[DCON] Connection Diameter (mm):
25.40
[DCSFMS] Contact Surface Diameter Machine Side (mm):
32.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
Economical inserts with 4 cutting edges and excellent chip evacuation
Feature 2:
2xD to 6xD drilling lineup with 4 chipbreakers for various machining applications
Feature 3:
High speed and highly efficient machining with the combination of a CVD outer insert and PVD inner insert
Feature 4:
Excellent hole accuracy with a highly rigid design for better chatter resistance
ANSI Part Number:
S100DRV1000607
ISO Part Number:
S100-DRV1000-6-07
US Stock:
12
Worldwide Stock:
0
Compatible Inserts (Partial):
SCMT070305-…-E, SCMT070310-…-I
Old Material Number:
8859097
Insert Screw:
SB-3060TRP
Wrench (for Insert Screw):
DTPM-10
Compatible Inboard Inserts (Partial):
SCMT070310-...-I
Compatible Outboard Inserts (Partial):
SCMT070305-...-E
[DC] Cutting Diameter (Decimal Inch):
1.0000
[DC] Cutting Diameter (mm):
25.40
[DCN] Cutting Diameter Minimum (Decimal Inch):
1.0000
[DCX] Cutting Diameter Maximum (Decimal Inch):
1.0000
[LU] Usable Length (Decimal Inch):
6.0000
[DCON] Connection Diameter (Decimal Inch):
1.0000
[DCSFMS] Contact Surface Diameter Machine Side (Decimal Inch):
1.2598
[OAL] Overall Length (mm):
227.30
[OAL] Overall Length (Decimal Inch):
8.9488
