S10HSCLCR0407AE Right-Hand, Positive Rake, Boring Bar
$144.26
(No reviews yet)
Write a Review
S10HSCLCR0407AE Right-Hand, Positive Rake, Boring Bar
S10HSCLCR0407AE Right-Hand, Positive Rake, Dynamic Bar Boring Bar with 95 Degree Lead Angle and 7.00mm Minimum Bore Dia.

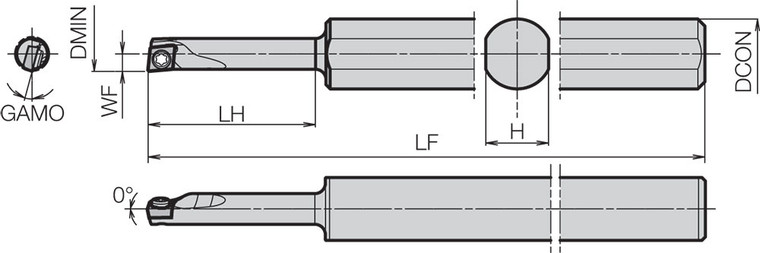

- Tool Style:
- S...SCLC-AE
- Material:
- Steel
- Bar Type:
- Excellent Bar
- Application:
- Boring|Internal Facing
- Hand:
- Right-Hand
- Rake:
- Positive
- [KAPR] Tool Entering Angle (Degree):
- 95
- Insert Shape:
- 80 Degree Diamond
- [DMIN] Minimum Bore Diameter (mm):
- 7.00
- [H] Shank Height (mm):
- 9.00
- [DCON] Connection Diameter (mm):
- 10.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
- Feature 2:
- Large chip pocket provides superior chip evacuation
- Feature 3:
- Anti-chatter vibration performance
- Feature 4:
- Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
- Feature 5:
- 0 (Axial), -13 (Radial) Rake Angle Dynamic Bar Boring Bar
- ANSI Part Number:
- S10HSCLCR0407AE
- ISO Part Number:
- S10H-SCLCR04-07AE
- US Stock:
- 0
- Worldwide Stock:
- 27
- Compatible Inserts (Partial):
- CCGT1411…, CCET1411…, CCGW1411…, CCMW1411…
- Old Material Number:
- 8828987
- Insert Screw:
- SB-2035TR
- Wrench (for Insert Screw):
- FT-6
- [LF] Functional Length (mm):
- 100.00
- [LH] Head Length (mm):
- 32.00
- Product Notes:
- Left-hand Insert for Right-hand Toolholder
- [DMIN] Minimum Bore Diameter (Decimal Inch):
- 0.2756
- [H] Shank Height (Decimal Inch):
- 0.3543
- [DCON] Connection Diameter (Decimal Inch):
- 0.3937
- [LF] Functional Length (Decimal Inch):
- 3.9370
- [LH] Head Length (Decimal Inch):
- 1.2598
