S10HSWUBL0808A Left-Hand, Positive Rake, Boring Bar

S10HSWUBL0808A Left-Hand, Positive Rake, Boring Bar

SKU:
THC11975
|
UPC:
4960664582303
$127.49
(No reviews yet)
Width:
1.54 (in)
Height:
1.54 (in)
Depth:
8.27 (in)
Current Stock:
Adding to cart… The item has been added
Description
S10HSWUBL0808A Left-Hand, Positive Rake, Dynamic Bar Boring Bar with 93 Degree Lead Angle and 8.00mm Minimum Bore Dia.
Additional Information
Tool Style:
S...SWUB-A
Material:
Steel
Bar Type:
Steel Shank
Application:
Boring
Hand:
Left-Hand
Rake:
Positive

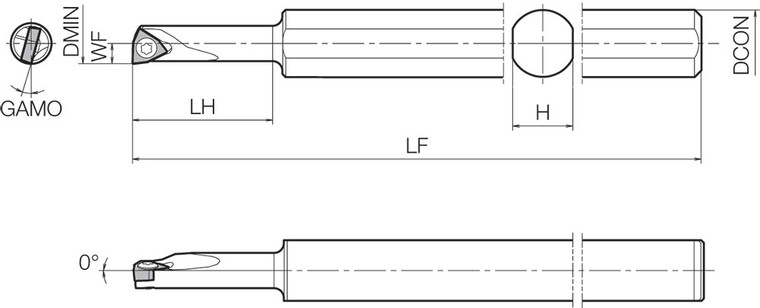

[KAPR] Tool Entering Angle (Degree):
93
Insert Shape:
80 Degree Trigon
[DMIN] Minimum Bore Diameter (mm):
8.00
[H] Shank Height (mm):
9.00
[DCON] Connection Diameter (mm):
10.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
Feature 2:
Large chip pocket provides superior chip evacuation
Feature 3:
Anti-chatter vibration performance
Feature 4:
Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
Feature 5:
0 (Axial), -15 (Radial) Rake Angle Dynamic Bar Boring Bar
ANSI Part Number:
S10HSWUBL0808A
ISO Part Number:
S10H-SWUBL08-08A
US Stock:
0
Worldwide Stock:
13
Compatible Inserts (Partial):
WBMT1515…, WBGT1515…, WBET1515…, WBGW1515…
Old Material Number:
8829128
Insert Screw:
SB-2035TR
Wrench (for Insert Screw):
FT-6
[LF] Functional Length (mm):
100.00
[LH] Head Length (mm):
28.00
Product Notes:
Right-hand Insert for Left-hand Toolholder
[DMIN] Minimum Bore Diameter (Decimal Inch):
0.3150
[H] Shank Height (Decimal Inch):
0.3543
[DCON] Connection Diameter (Decimal Inch):
0.3937
[LF] Functional Length (Decimal Inch):
3.9370
[LH] Head Length (Decimal Inch):
1.1024
